Overview

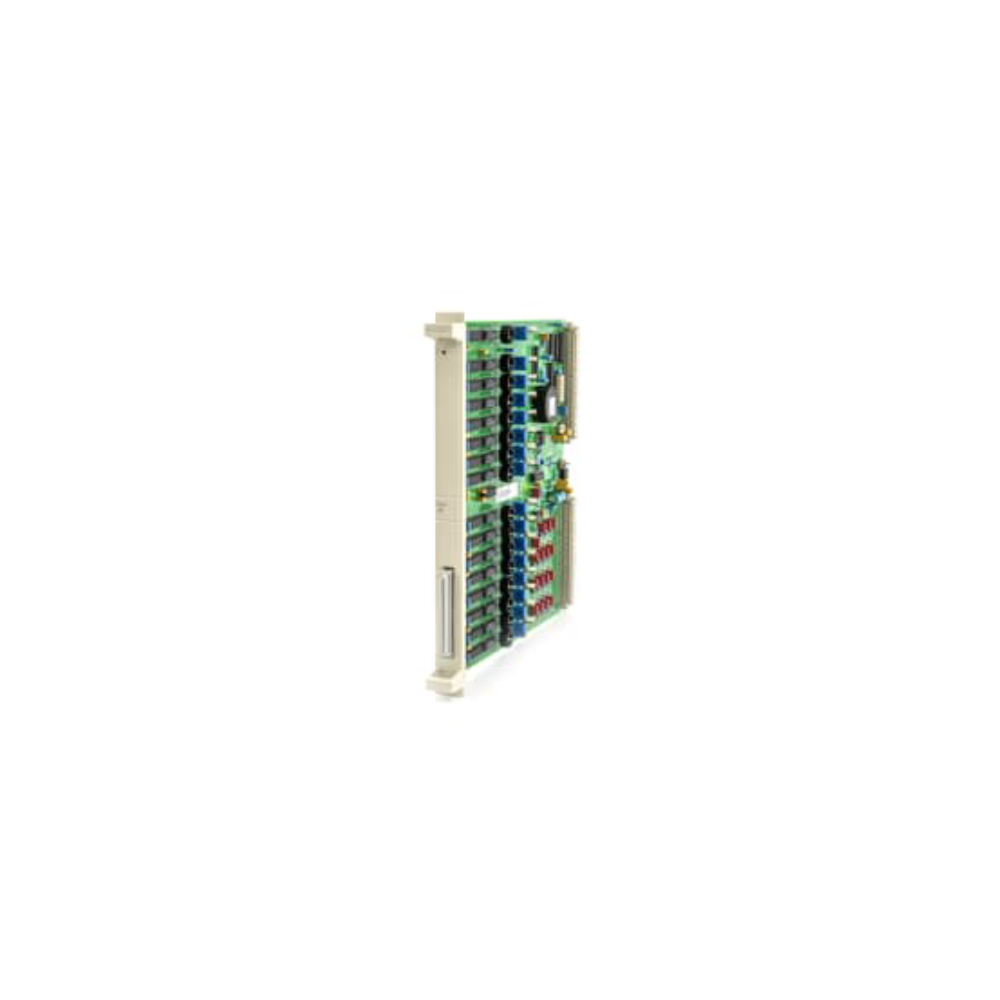

The ABB DSAO 130 Analog Output Board provides precise analog signal output across 16 channels. Designed specifically for Safeguard safety controllers, this module ensures reliable and accurate control of industrial processes. It can output standard 0–10V or 0–20mA signals, making it compatible with a wide range of actuators, transducers, and other field devices.
Key Specifications
| Parameter | Specification |
|---|---|
| Product ID | 57120001-FG |
| ABB Type Designation | DSAO 130 |
| Description | Analog Output Unit, 16 Channels |
| Output Signal Range | 0–10V, 0–20 mA |
| Accuracy | ±0.4% |
| Net Dimensions (H x W x D) | 18 mm x 225 mm x 324 mm |
| Net Weight | 0.45 kg |
| HS Code | 853890 |
| Customs Tariff Number | 85389091 |
| RoHS Compliance | Yes (EU Directive 2011/65/EU) |
| WEEE Category | 5. Small Equipment |
Features
- 16-Channel Output: Handles multiple analog outputs simultaneously.
- Flexible Signal Types: Supports 0–10V and 0–20mA outputs.
- High Accuracy: ±0.4% ensures precise process control.
- Safety Controller Compatibility: Specifically designed for Safeguard 400 Series controllers.
- Compact Design: Fits seamlessly into S100 I/O racks for efficient space utilization.
- Reliable Spare Part: Designed for industrial use with minimal maintenance.
Applications
The DSAO 130 Analog Output Board is ideal for:
- Safeguard 400 safety systems requiring high-precision analog control.
- Industrial automation applications within S100 I/O and Advant OCS systems.
- Process control environments where 16-channel analog output is needed.
- Replacement or upgrade of existing DSAO 130 boards in safety-critical installations.
Ordering Information
- Model / Part Number: 57120001-FG
- Kit / Related Part Numbers:
- 3BNP000466R1: DSAO130K04 Analog Output Dual Set/16ch./8 (Kit)
- 5730030-UR: Kit
Details
| Weight | 0.45 kg |
|---|
