Product Overview

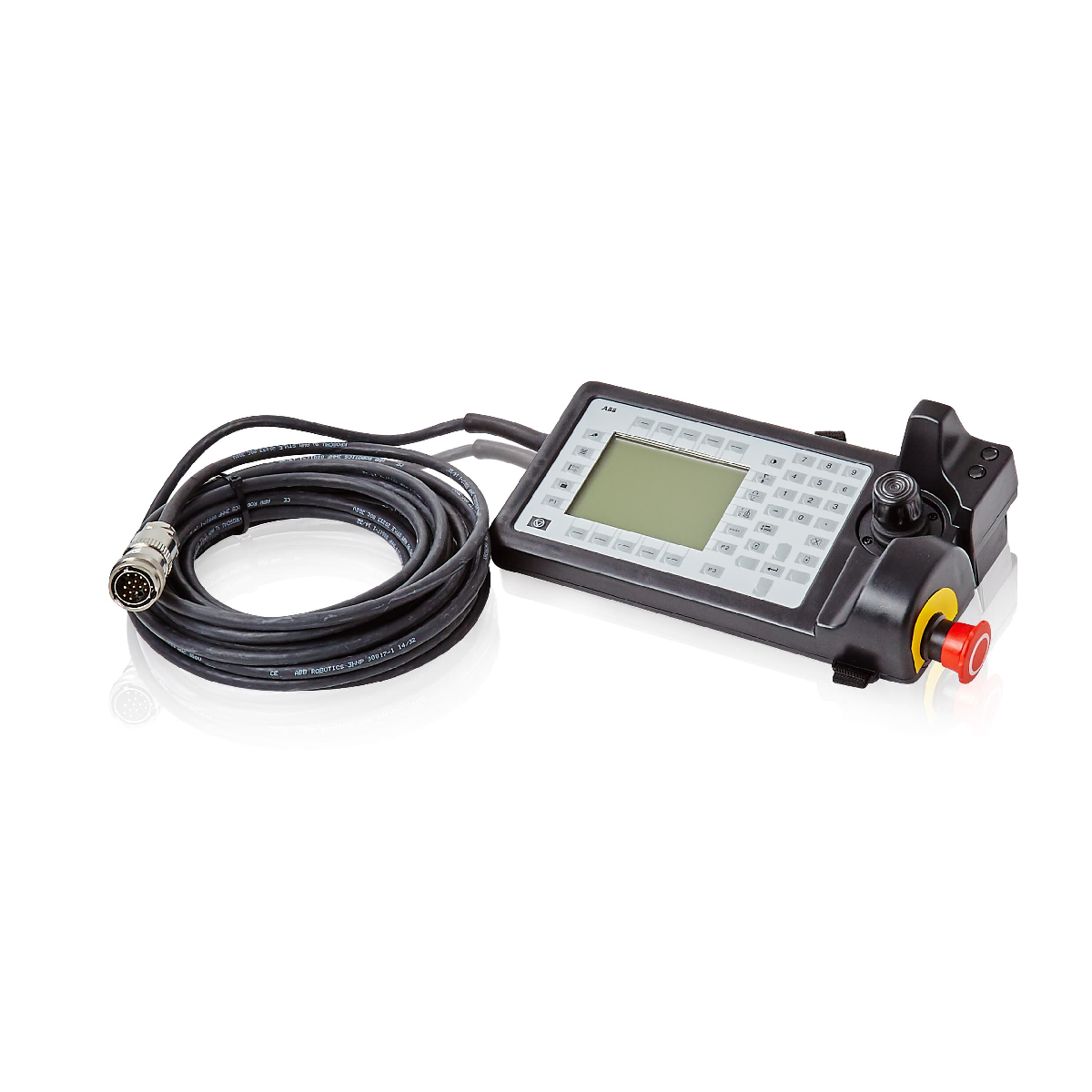

The ABB 3HNE00313-1 TPU2 Programmer Unit is a reliable and ergonomic programming device designed for ABB Robotics S4 controllers. It allows operators to efficiently configure, monitor, and control robotic functions with precision. Moreover, the TPU2 features a bright backlit display that enhances visibility in low-light industrial environments, ensuring smooth operation during maintenance or programming tasks.
This model replaces several earlier versions, including 3HNE00314-1, 3HNE00131-1, and 3HNE00132-1, making it a versatile spare part for ABB’s legacy robotic systems. Its compact and robust design ensures long service life, even under demanding shop-floor conditions.
Functional Highlights
The ABB TPU2 3HNE00313-1 offers excellent usability and compatibility with S4 series controllers. It provides intuitive access to robot control functions while maintaining ABB’s strict standards for industrial reliability.
Main Advantages:
- Enhanced Visibility: Equipped with a backlit display for clear readability.
- Plug-and-Play Replacement: Simplifies maintenance and reduces system downtime.
- Global Availability: Stocked in both Germany and China for fast worldwide delivery.
- Lightweight & Durable: Built with a 2.4 kg net weight, ensuring robust yet ergonomic handling.
- Full Compatibility: Designed as a direct replacement unit for multiple legacy models.
In addition, its compact 45 × 27.5 × 27.5 mm frame provides convenient portability for field engineers and robotics technicians.
Technical Specifications
| Parameter | Details |
|---|---|
| Product ID | 3HNE00313-1 |
| Product Name | TPU2 Programmer Unit |
| System Compatibility | ABB Robotics S4 Controllers |
| Product Type | Spare Part for ABB Robotics |
| Dimensions | 45 × 27.5 × 27.5 mm |
| Net Weight | 2.4 kg |
| Gross Weight | 3.3 kg |
| Country of Origin | Sweden (SE) |
| Stock Locations | Germany, China |
| Tariff Code | 85480090 |
| Minimum Order Quantity | 1 Piece |
| Availability | In Stock |
| WEEE Category | Product Not in Scope |
Therefore, the TPU2 module combines reliable hardware with user-friendly control capabilities, ensuring ABB robots continue to perform at peak precision.
System Integration
The 3HNE00313-1 TPU2 integrates directly into ABB S4 robotic control systems, making it a crucial interface between human operators and robotic motion logic. It is typically used in:
- Automated production lines requiring quick setup or reprogramming.
- Maintenance operations for ABB industrial robots.
- On-site troubleshooting and system calibration.
For instance, engineers can use the TPU2 to modify movement parameters or diagnose controller errors without external programming stations.
Details
| Weight | 3.3 kg |
|---|---|
| Dimensions | 1143 × 698 × 698 mm |
