Overview

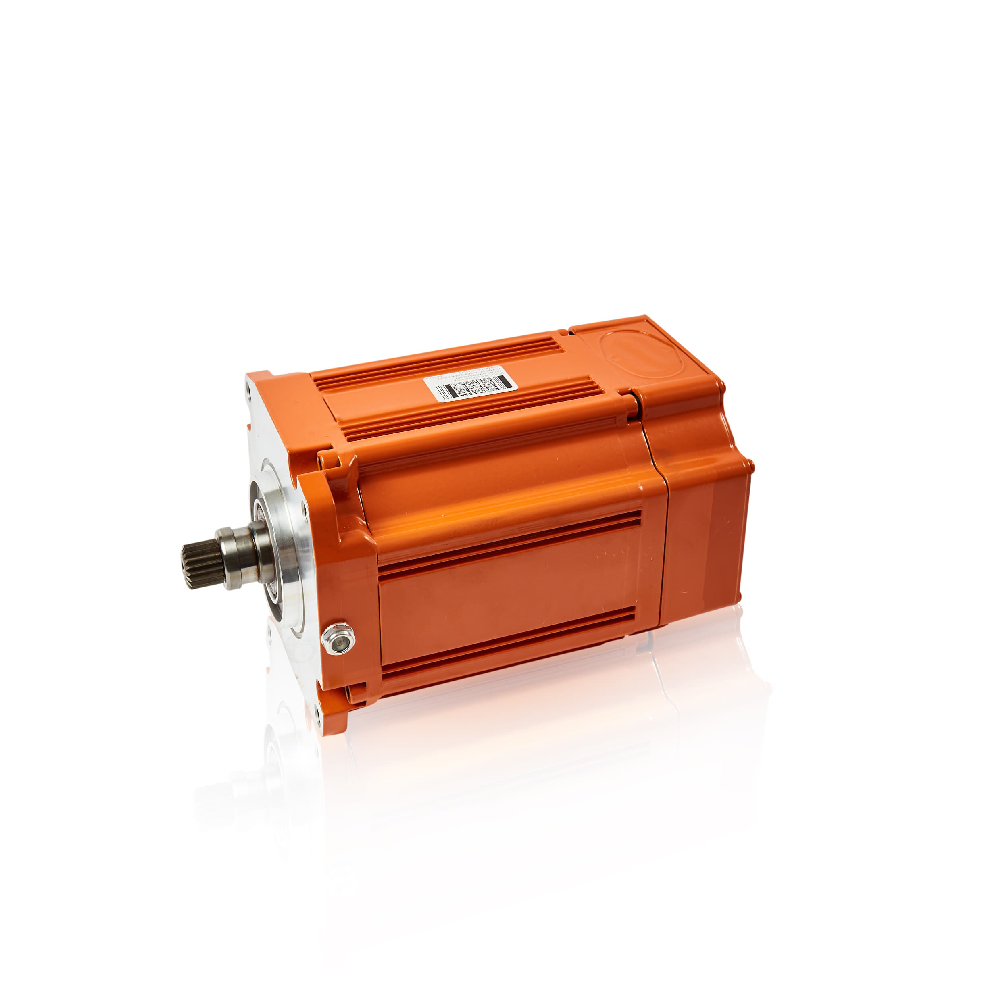

The ABB 3HAC055448-004 Rotating AC Motor is a high-performance drive unit designed for Axis 3 of industrial robots. It is primarily compatible with the ABB IRB 6700 series, delivering 4 Nm torque and 1654 W output power. This motor ensures precise control and long-term reliability in demanding robotic operations.
Product Details
- Product ID: 3HAC055448-004
- Type Designation: 4Nm / 1654W
- Catalog Description: Rotating AC Motor with components
- Replaces: 3HAC048234-001
Technical Specifications
- Torque: 4 Nm
- Power Output: 1654 W
- Axis Application: Axis 3
- Motor Placement: Upper arm of the robot
- Robot Compatibility: IRB 6700 series
- Protection Type: Standard / F – Orange
Physical Dimensions
- Net Weight: 26.34 kg
- Gross Weight: 26.34 kg
- Length: 340 mm
- Height: 185 mm
- Width: 195 mm
Ordering Information
- Country of Origin: China
- Invoice Description: Rotating AC Motor with components
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Availability: Direct order (not quote-only)
- Stock Locations: Menden (Germany), Shanghai (China)
Compliance and Classification
- Customs Tariff Number: 85015220
- Part Type: New
- WEEE Category: Not in scope
Details
| Weight | 26.34 kg |
|---|
