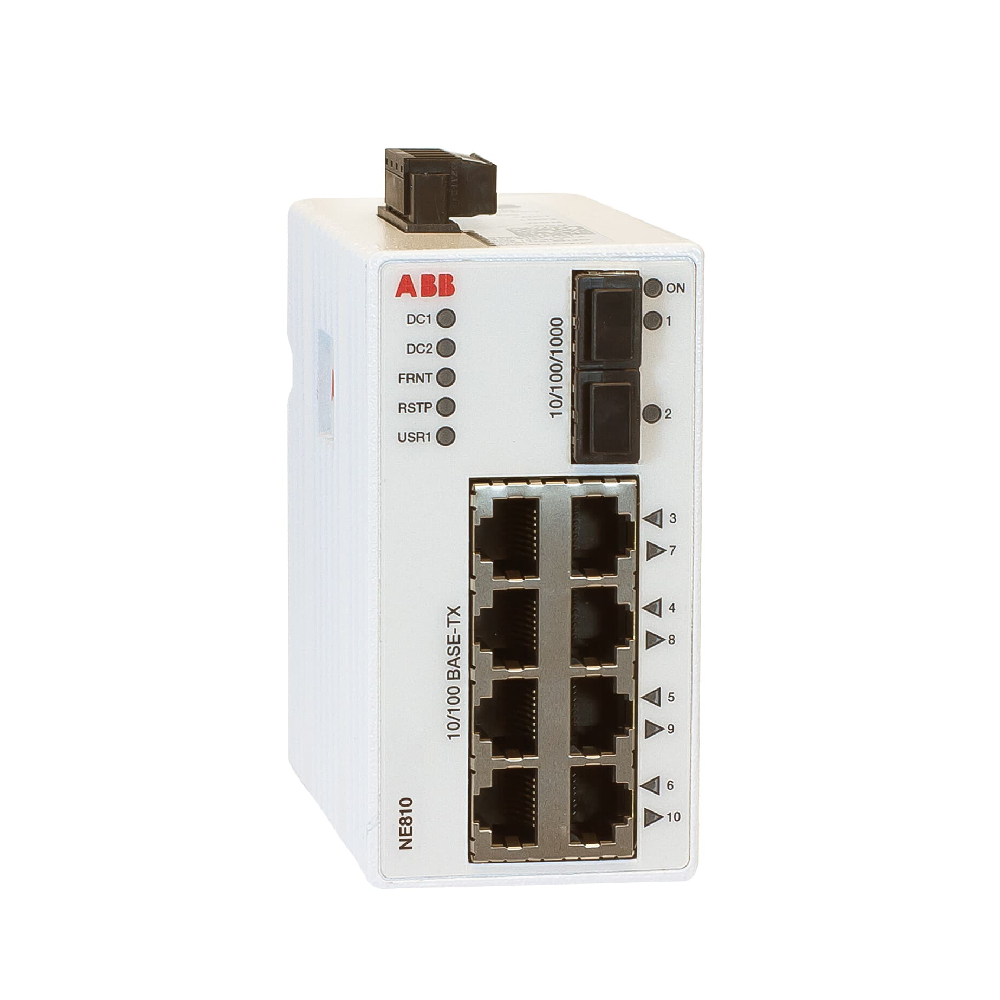

The ABB 3BSE080207R1 NE810 is a robust industrial Ethernet switch engineered for System 800xA environments. With ten ports, redundant power input, and advanced network recovery features, this device delivers reliable communication for mission-critical industrial applications. Its compact form factor, extended temperature tolerance, and compliance with global standards make it suitable for diverse automation systems.
Key Features and Benefits
- Pre-configured for seamless integration with ABB System 800xA
- Ten-port design with eight RJ45 ports and two SFP slots
- Supports both 100 Mbit and Gigabit fiber connections
- Redundant 19–60 VDC power supply for increased reliability
- Fast Recovery of Network Topology (FRNT) ensures quick reconfiguration after failures
- Industrial-grade design with IP40 enclosure and DIN-rail mounting
- Extended service life and full ABB support for lifecycle management
- Quality of Service (QoS) with four-level priority scheduling
- Real-time Ethernet properties for deterministic applications
- Marine certified (DNV), RoHS compliant, and WEEE compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 3BSE080207R1 |
| Product Type | Industrial Ethernet Switch |
| Ethernet Ports | 8 × 10/100 RJ45, 2 × 10/100/1000 SFP |
| Network Redundancy | FRNT (Fast Recovery of Network Topology) |
| Layer Support | Layer 2 |
| Managed | Yes |
| Mounting | DIN-rail |
| Firewall | Not included |
| Console Port | 1 × 2.5 mm jack |
| Digital I/O | 1 × 4-port detachable screw terminal |
Electrical Characteristics
- Operating Voltage: 19–60 VDC (redundant power input)
- Current Draw: 240 mA @ 24 VDC, 120 mA @ 48 VDC
- Fuse Type: Internal T4A / 250 V
Environmental and Compliance
| Parameter | Specification |
|---|---|
| Protection Level | IP40 |
| Operating Temperature | -40…+70 °C |
| Storage Temperature | -50…+85 °C |
| Humidity | <93% non-condensing |
| Altitude | ≤2000 m |
| Marine Certification | DNV |
| Compliance | RoHS (EN 50581:2012), WEEE (2012/19/EU) |
Dimensions and Weight
- Size: 52 × 100 × 101 mm (W × H × D)
- Weight: 0.7 kg (1.54 lbs.)
Applications and Compatibility
Engineers rely on the ABB NE810 3BSE080207R1 in safety-critical infrastructure, including railway systems, traffic control, and tunnel automation. Moreover, its deterministic communication and FRNT redundancy make it an excellent choice for substation automation and other System 800xA projects.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 52 × 100 × 101 mm |
