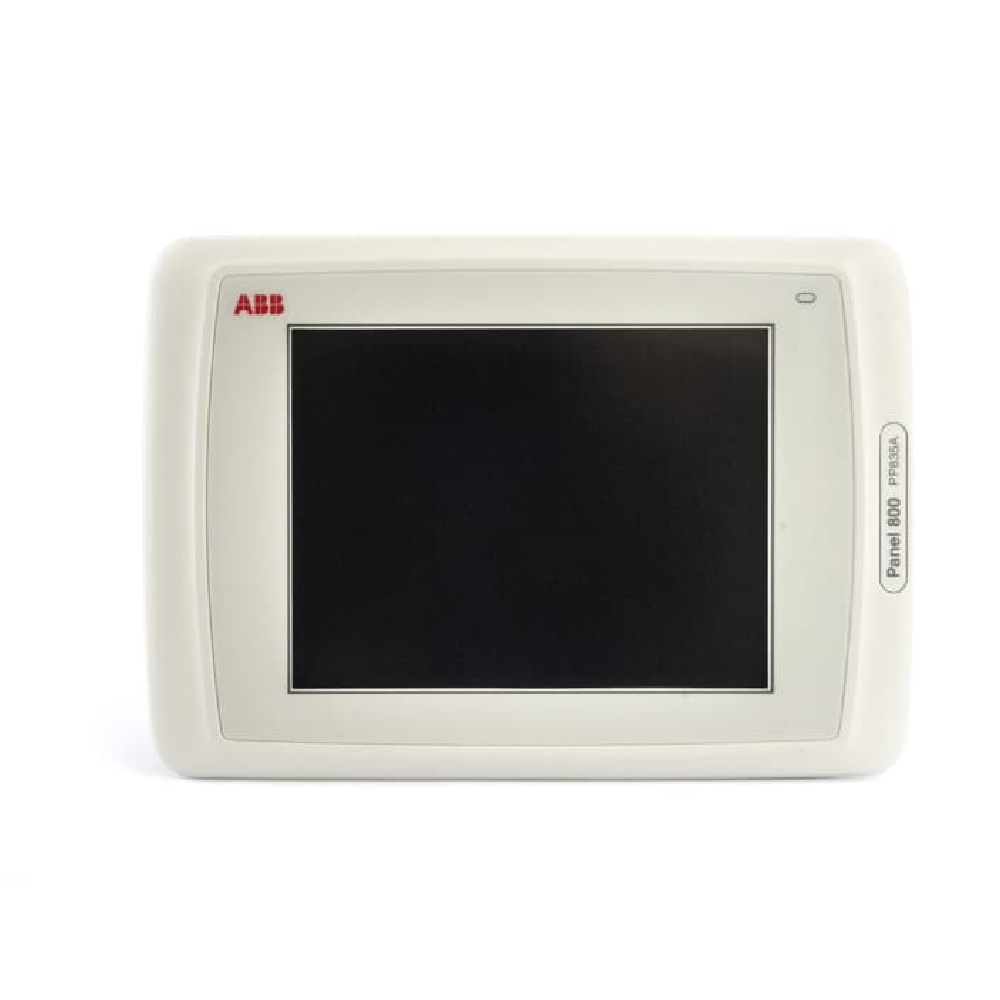

The ABB PP835A Touch Panel provides a reliable and intuitive interface for industrial control systems. It features a 6.5-inch TFT touch screen with 640×480 pixel resolution, displaying both graphics and text. Furthermore, it integrates seamlessly with ABB’s 800xA control system, supporting efficient operator interaction.
Key Features
- High-Resolution Touch Screen: 6.5-inch TFT, 64K colors, polyester-on-glass touch surface supporting one million finger touches.
- Durable Construction: Front panel IP66, rear panel IP20, suitable for harsh industrial environments.
- Flexible Connectivity: Offers RS422/RS485, RS232C, Ethernet, USB Host/Device ports, and Compact Flash slot.
- Long-Life Backlight: LED backlight lasts over 25,000 hours at 25°C.
- Real-Time Clock: Maintains accurate timing with ±20 PPM error, maximum 1 min/month at 25°C.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 3BSE042234R2 |
| ABB Type | PP835A |
| Display Size | 6.5 inches TFT-LCD, 640×480 pixels, 64K colors |
| Active Area | 131.5 × 98.6 mm |
| Touch Screen Material | Polyester on glass |
| Overlay Material | Autotex F157/F207 |
| Front Panel Seal | IP66 |
| Rear Panel Seal | IP20 |
| Net Dimensions | Depth: 180 mm, Height: 270 mm, Width: 76.5 mm |
| Weight | 1.48 kg |
| Power Supply | 24V DC (20–30V DC) |
| Normal / Max Power | 0.4 A / 0.9 A |
| Serial Ports | RS422/RS485 (25-pin), RS232C (9-pin) |
| Ethernet | Shielded RJ45 |
| USB Ports | Host Type A, Device Type B (USB 1.1) |
| CF-Slot | Type I & II, 12 MB storage |
| Operating Temp | Vertical: 0–50°C, Horizontal: 0–40°C |
| Storage Temp | -20 to +70°C |
| Humidity | 5–85% non-condensing |
| Mounting Depth | 56 mm (156 mm including clearance) |
| Approvals | CE, UL/cUL, DNV, NEMA 4x indoor |
Applications
- Industrial Automation: Displays process data and enables operator control in ABB 800xA systems.
- Harsh Environments: IP66 front panel protects against dust and water ingress.
- Data Storage & Connectivity: Supports CF card storage, Ethernet communication, and USB interfaces.
FAQ
Q1: Can this panel operate in both vertical and horizontal installations?
Yes, it supports 0–50°C vertically and 0–40°C horizontally.
Q2: How many touches can the screen endure?
The polyester-on-glass touch surface supports up to one million finger touches.
Q3: Does it include a protective cover for the touch screen?
Yes, ABB recommends the RX835 Touch Cover (exchange part EXC3BSE042234R2) for screen protection.
Q4: What are the connectivity options?
It provides RS422/RS485, RS232C, Ethernet, USB Host/Device ports, and a Compact Flash slot.
Details
| Weight | 1.48 kg |
|---|
