Product Overview

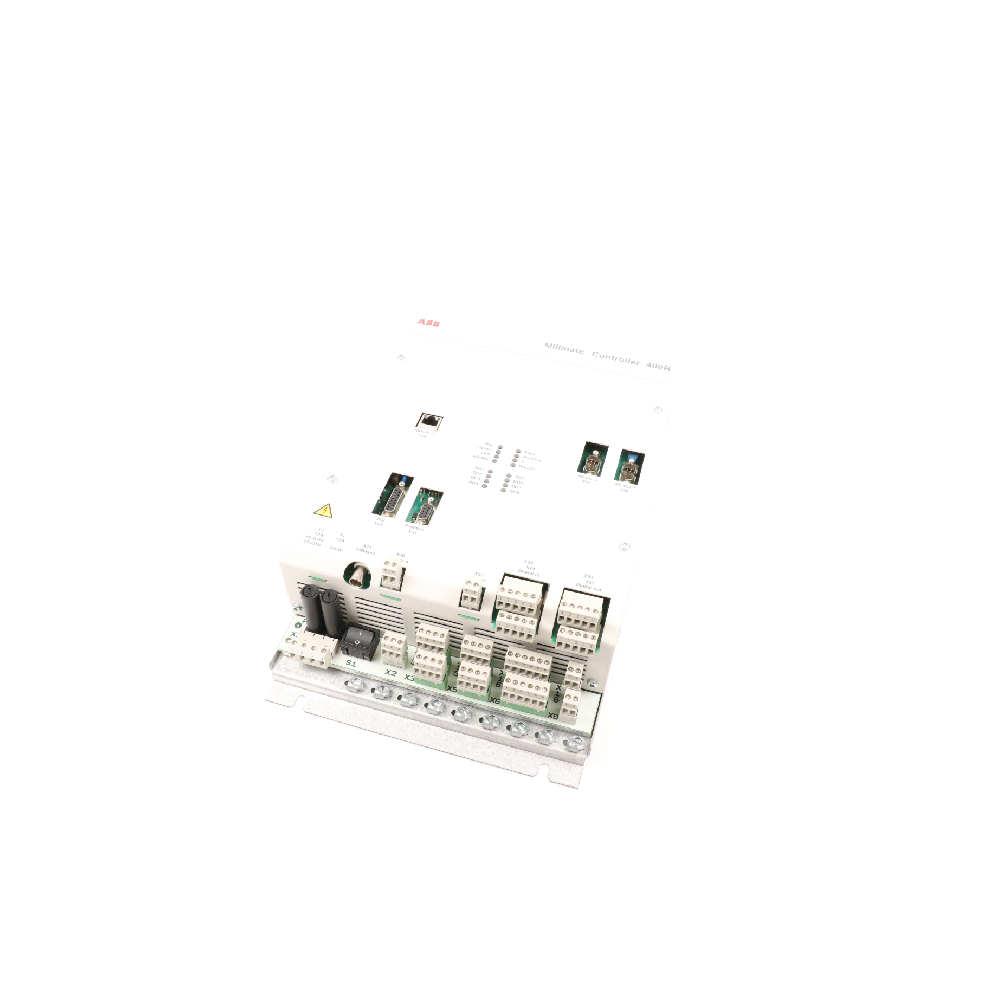

The ABB PFXA 401 Control Unit (Product ID: 3BSE024388R1) serves as an advanced control interface for industrial automation applications, including load cells, edge sensors, and other precision systems. This control unit processes analog inputs, compensates for angle variations in load cells, and facilitates seamless digital signal interfacing. It is a highly reliable solution for applications requiring accurate measurement and data processing.
Manufactured in both the United States (US) and Sweden (SE), the PFXA 401 is commonly deployed in environments that demand high-performance control and monitoring for various industrial processes.
Key Specifications
| Specification | Details |
|---|---|
| ABB Type Designation | PFXA 401 |
| Catalog Description | PFXA 401 Control Unit |
| Country of Origin | United States (US), Sweden (SE) |
| Customs Tariff Number | 85389091 |
| UN Classification for Dangerous Goods | Class 9 (Miscellaneous Dangerous Substances and Articles) |
| UN Number | UN3091-PI970 (Lithium battery-containing equipment) |
Technical Details
- Analog Inputs: 2 channels, for precise measurement and input processing.
- Compatible Load Cells:
- QGPR 102/104: Maximum load of 2 MN.
- PFBL 101/141: Maximum load of 2 x 400 kN.
- Edge Sensors Compatibility: Designed for use with PMSG 123 / 125 sensors.
- Battery: Lithium battery 3BSC790006R1.
- Fuse: 2A, 250V, part number 3BSC770029R17.
Connectivity
- Power Connection (X1): 4-pole disconnectable terminal, part number 2664197-4.
- Synchronization Terminal (X2): 3-pole disconnectable terminal, part number 2664177-3.
- Analog Output Terminals (X6, X16): 6-pole disconnectable terminal, part number 2664177-6.
- Digital Signal Terminals (X24, X25, X34, X35): 5-pole disconnectable terminal, part number 2664163-5.
- Additional Terminals:
- 4-pole terminals: X3, X13, X5, X15 (part 2664177-4).
- 2-pole terminals: X8, X18, X23, X30 (part 2664177-2).
Physical and Logistical Information
| Specification | Details |
|---|---|
| Gross Weight | 5 kg |
| Gross Volume | 8 dm³ |
| Dimensions | Not specified |
| Packaging | Shipped as a single unit with 5 kg gross weight |
| Stock Location | Malmö, Sweden |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Additional Information
| Specification | Details |
|---|---|
| Frame Size | Spare_Parts (Replacement Unit) |
| UNSPSC Code | 39120000 (Electrical Equipment) |
| WEEE Category | Not within WEEE scope |
Details
| Weight | 5 kg |
|---|
