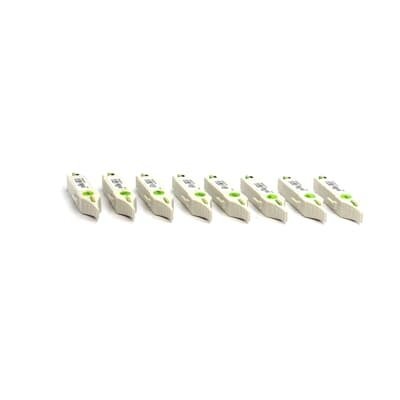

The ABB TY801K01 Shunt Stick is designed to ensure precise current measurement in S800 I/O systems. This set of 8 shunts, rated at 125 + 125 ohms, works with AI845 and AI880A modules on TU834, TU844, TU845, and TU854. Its compact size and lightweight design make installation straightforward and efficient.
Key Features
- Provides accurate shunt resistance for S800 I/O modules
- Compatible with AI845 and AI880A modules on TU834, TU844, TU845, TU854
- Compact and lightweight for easy integration
- Pack of 8 shunt sticks for convenient replacement
- Compliant with RoHS Directive 2011/65/EU
Technical Specifications
| Parameter | Specification |
|---|---|
| Product ID | 3BSE023607R1 |
| ABB Type Designation | TY801K01 |
| Catalog Description | 8pcs Shunt Stick |
| Long Description | 125 + 125 ohms shunt for AI845/AI880A on TU834, TU844, TU845, TU854 |
| Product Type | Module_Termination_Unit |
| HS Code | 853321 – Electrical resistors, other fixed resistors ≤20 W |
| Customs Tariff Number | 85332100 |
| Net Depth / Length | 62 mm |
| Net Width | 15.5 mm |
| Net Height | 11 mm |
| Net Weight | 0.06 kg |
| RoHS Status | Compliant with EU Directive 2011/65/EU |
| WEEE Category | 5 – Small Equipment |
| Number of Batteries | 0 |
| SCIP Number | 87787c0d-1847-4b49-837a-735f990dd85a (Sweden) |
Details
| Weight | 0.06 kg |
|---|
