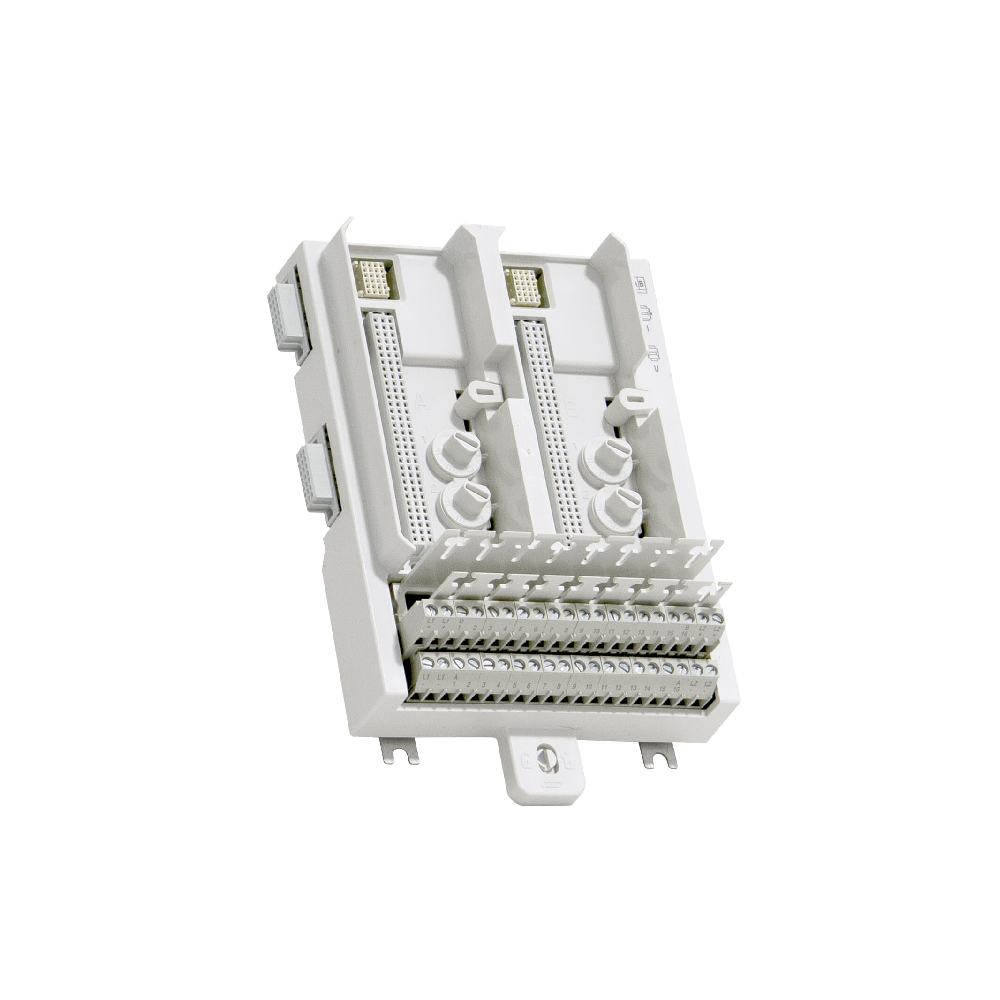

The ABB TU844 is a Redundant Module Termination Unit (MTU) designed for use in redundant I/O configurations. Operating at 50V, it ensures reliable termination and integration of multiple I/O modules in industrial automation systems.
Product Overview
- Product ID: 3BSE021445R1
- ABB Type Designation: TU844
- Catalog Description: Redundant Module Termination Unit (MTU) for S800 I/O systems
- Mounting: Horizontal DIN rail
- Shunt Stick: Not included
Product Specifications
| Feature | Details |
|---|---|
| Product Type | Module Termination Unit |
| Channel Type | Analog Input (AI) |
| Number of Input Channels | 8 |
| Depth / Length | 64 mm |
| Height | 186.5 mm |
| Width | 124 mm |
| Weight | 0.6 kg |
Environmental & Compliance Information
- RoHS Status: Compliant with EU Directive 2011/65/EU
- WEEE Category: 5 (Small Equipment, No External Dimension Over 50 cm)
- Batteries: None
- SCIP: fa3c15ed-e509-40e5-8dfb-036915629981 (Bulgaria)
Application & Integration
The TU844 is specifically used with redundant I/O setups, providing reliable connectivity and termination for S800 I/O modules. It is compatible with ABB 800xA systems, including versions 4.0, 4.1, 5.0, 5.1, and 6.0, and is also suitable for the Compact Product Suite I/O Modules.
Product Categories
- Control System Products
- I/O Products
- S800 I/O Module Termination Units
- Control Systems (800xA)
Ordering Information
- HS Code: 853710 – Boards, panels, and consoles for electric control or distribution, including numerical control apparatus (under 1,000V)
- Customs Tariff Number: 85371098
Details
| Weight | 0.6 kg |
|---|
