Product Overview

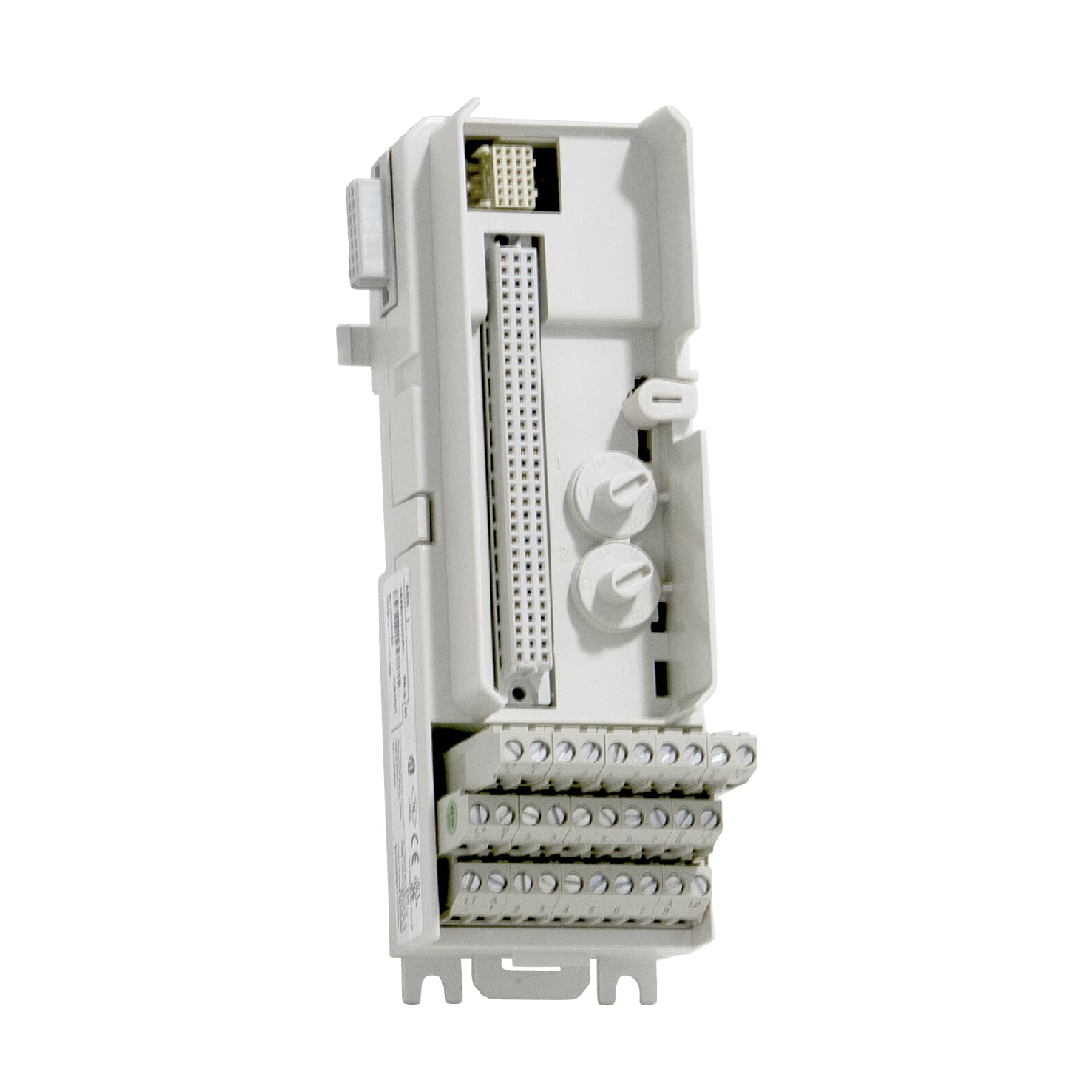

The ABB TU810V1 is a Compact Module Termination Unit (MTU) for S800 I/O systems.
It provides efficient signal termination, supporting seamless integration with ABB control systems such as 800xA and Advant OCS.
Its compact 2×8 terminal design saves space while maintaining reliable performance in industrial environments.

Key Features

• Compact Design: 2×8 signal terminals for space-saving installation.
• Voltage Rating: Supports up to 50V systems.
• Compatibility: Works with S800 I/O modules in ABB 800xA and Advant OCS systems.
• Durability: RoHS compliant (EU Directive 2011/65/EU).
• Environmental Compliance: WEEE Category 5.

Technical Specifications

General Information

• Manufacturer: ABB
• Model: TU810V1
• Part Number: 3BSE013230R1
• Type: Module Termination Unit
• Series: S800 I/O

Electrical Specifications

• Voltage Rating: 50V

Physical Dimensions

• Depth: 64 mm
• Height: 170 mm
• Width: 58.5 mm
• Weight: 0.2 kg

Environmental Specifications

• RoHS Status: Compliant with EU Directive 2011/65/EU
• WEEE Category: 5 (Small Equipment, no external dimension >50 cm)
• Batteries: Not required

Customs and Tariff Information

• HS Code: 85371098
• Country of Origin: Bulgaria (BG)

Applications

The TU810V1 is ideal for industrial automation systems requiring:

• Robust signal termination for S800 I/O modules
• Seamless integration with ABB 800xA and Advant OCS control systems
• Stable and reliable performance in demanding industrial environments
