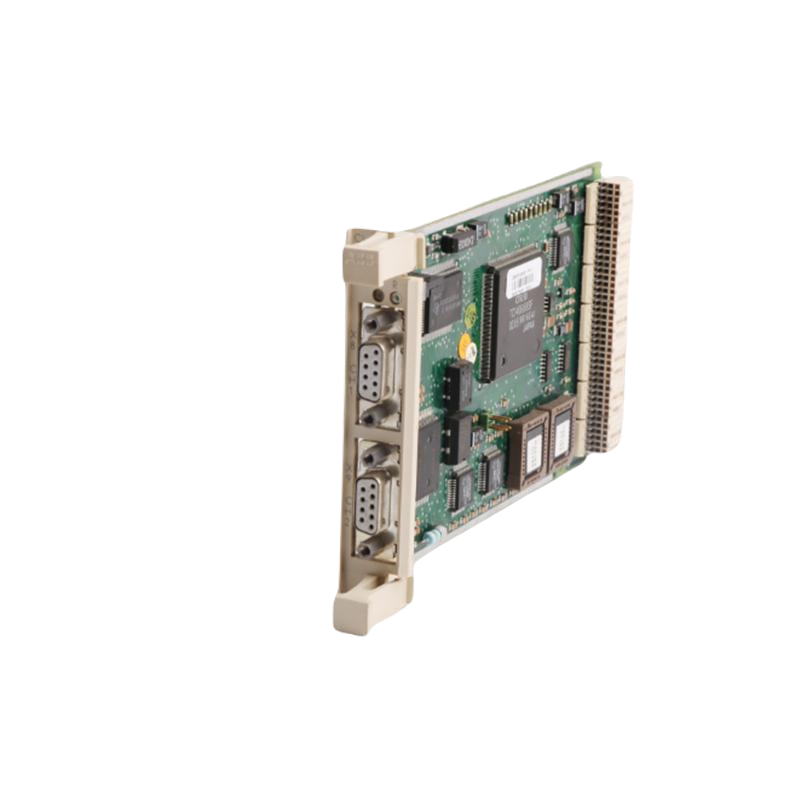

The ABB CI520V1 (3BSE012869R1) is a communication interface module designed for the Advant Fieldbus 100 (AF100) system. It enables reliable data exchange between controllers and field devices in ABB AC 400 automation systems.

Key Features:

• Facilitates seamless communication with AC 410 and AC 450 controllers.
• Compatible with CI522A/CI522 replacement modules under specified conditions.
• Medium: AF100 Interface for fieldbus communication.
• RoHS Exemption: Article 2(4)(c),(e),(f),(j) compliant.
• Limited availability: order exchange service recommended (EXC3BSE012869R1).

Technical Specifications:

• Product Type: Communication Module
• Dimensions: 112.5 × 13.5 mm (W × H)
• Weight: 0.145 kg
• Country of Origin: Sweden
• WEEE Category: 5 – Small Equipment
• Number of Batteries: 0

Replacement & Upgrade Conditions:

• Replacement modules: CI522A / CI522
• Required cables: TK803V0x (replaces TK515 or TK593)
• Software upgrade required for use in AC 410 and AC 450 controllers:
  • AC 410: 1.4/x (BAS1110.0/x), 1.5/x (BAS1111.0/x)
  • AC 450: 2.0/x – 2.3/x (BAS411.0/x – BAS414.0/x)

Applications:

• Advant OCS systems with Master SW
• Controllers: AC 410 (v1.5), AC 450 (v2.3), AC 450RMC (2.x)
• Fieldbus communication in control & automation networks

Ordering Information:

• HS Code: 85389091
• Exchange Part Number: EXC3BSE012869R1
