Product Overview

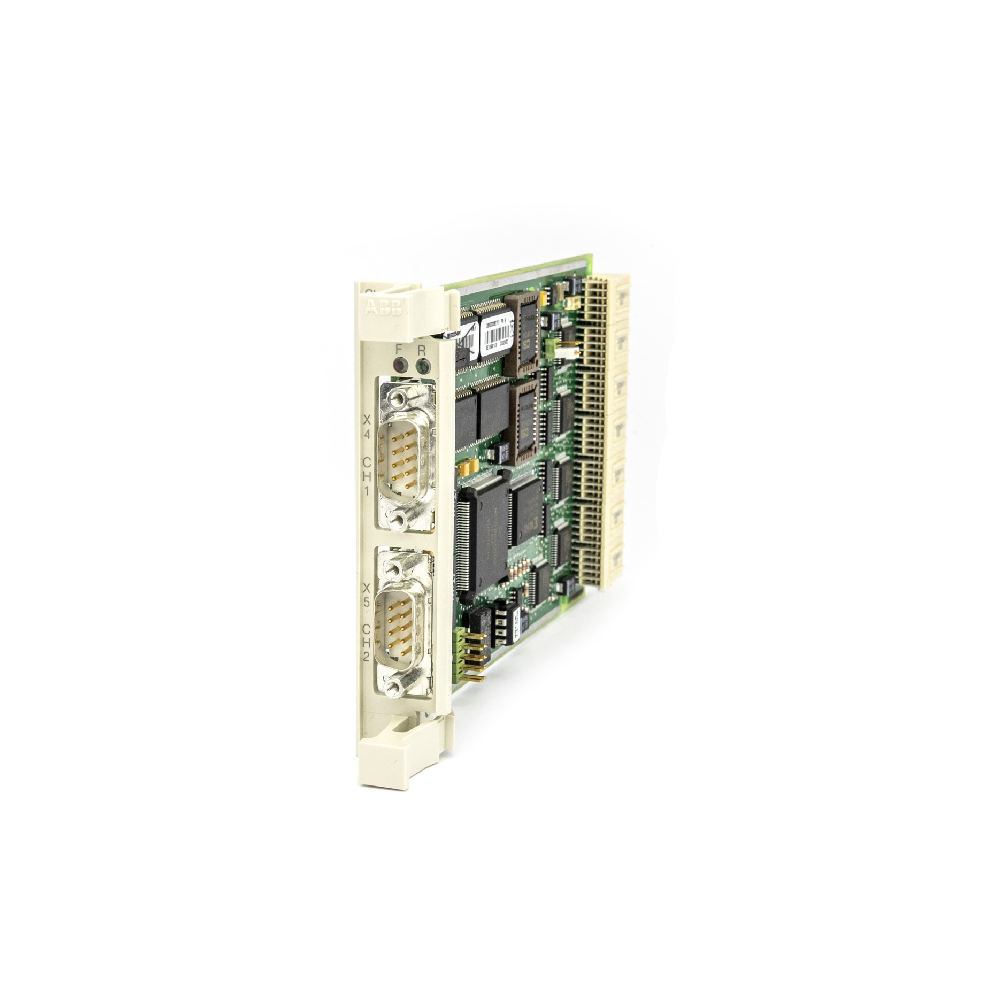

The ABB CI532V02 MODBUS Interface (Product ID: 3BSE003827R1) is a high-performance communication submodule designed for Advant controllers. It provides dual-channel communication capabilities via RCOM/RCOM+ protocols, ensuring reliable data exchange within ABB’s Advant process control systems. This module is ideal for industrial systems that demand redundancy or the ability to maintain simultaneous connections for enhanced communication reliability.
The CI532V02 supports Modbus communication, a widely adopted industrial protocol used for system interconnection and control. With its compact size and specific functionality, this module ensures seamless integration with ABB’s Advant controllers, optimizing performance in industrial applications.
Key Specifications
| Specification | Details |
|---|---|
| ABB Type Designation | CI532V02 |
| Catalog Description | CI532V02 MODBUS Interface, 2 channels |
| Product Type | Communication Module |
| Medium Description | CI532V02 Submodule MODBUS Interface, 2 channels |
| Product ID | 3BSE003827R1 |
| Dimensions | Depth: 234 mm, Height: 22.5 mm, Width: 108 mm |
| Net Weight | 0.155 kg |
| Environmental Specifications | RoHS compliant with EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No external dimension exceeds 50 cm) |
| HS Code | 853890 |
| Customs Tariff Number | 85389091 |
| Batteries | None |
Functionality Overview
The CI532V02 is a Modbus interface submodule that enables RCOM/RCOM+ communication within Advant controllers. It offers the following features:
- Dual-Channel Communication: Allows for redundancy and simultaneous data transfer, ensuring improved communication reliability.
- RCOM/RCOM+ Protocol Support: Facilitates seamless integration with ABB’s Advant OCS systems.
- Compact Design: Small physical size suitable for integration in confined spaces.
This module is a key component for creating efficient and robust industrial control systems, particularly in processes requiring continuous communication and redundancy.
Ordering Information
| Specification | Details |
|---|---|
| Part Number | 3BSE003827R1 |
| Product Type | Communication Module |
| HS Code | 853890 |
| Tariff Number | 85389091 |
| Customs Classification | Communication Systems |
System Compatibility
The CI532V02 Modbus Interface is compatible with the following Advant Controllers:
- Advant Controller 110
- Advant Controller 160 (Version 2.2)
- Advant Controller 450 (Version 2.3 and older versions)
- Advant Controller 450RMC (Version 2.x)
- Advant Controller 410 (Version 1.5)
FAQ
Q1: What communication protocols does the CI532V02 support?
A1: The CI532V02 supports RCOM/RCOM+ communication protocols, ensuring seamless integration within Advant systems.
Q2: How many communication channels does the CI532V02 have?
A2: The CI532V02 has two communication channels, providing redundancy and increased reliability.
Q3: What is the power requirement for the CI532V02?
A3: The module does not have specific power requirements mentioned, but it is designed to interface with Advant controllers and operates effectively within their power specifications.
Q4: Is the CI532V02 compliant with environmental regulations?
A4: Yes, the CI532V02 is RoHS compliant and meets the requirements of EU Directive 2011/65/EU.
Q5: What is the net weight of the CI532V02?
A5: The CI532V02 weighs 0.155 kg.
