Product Overview

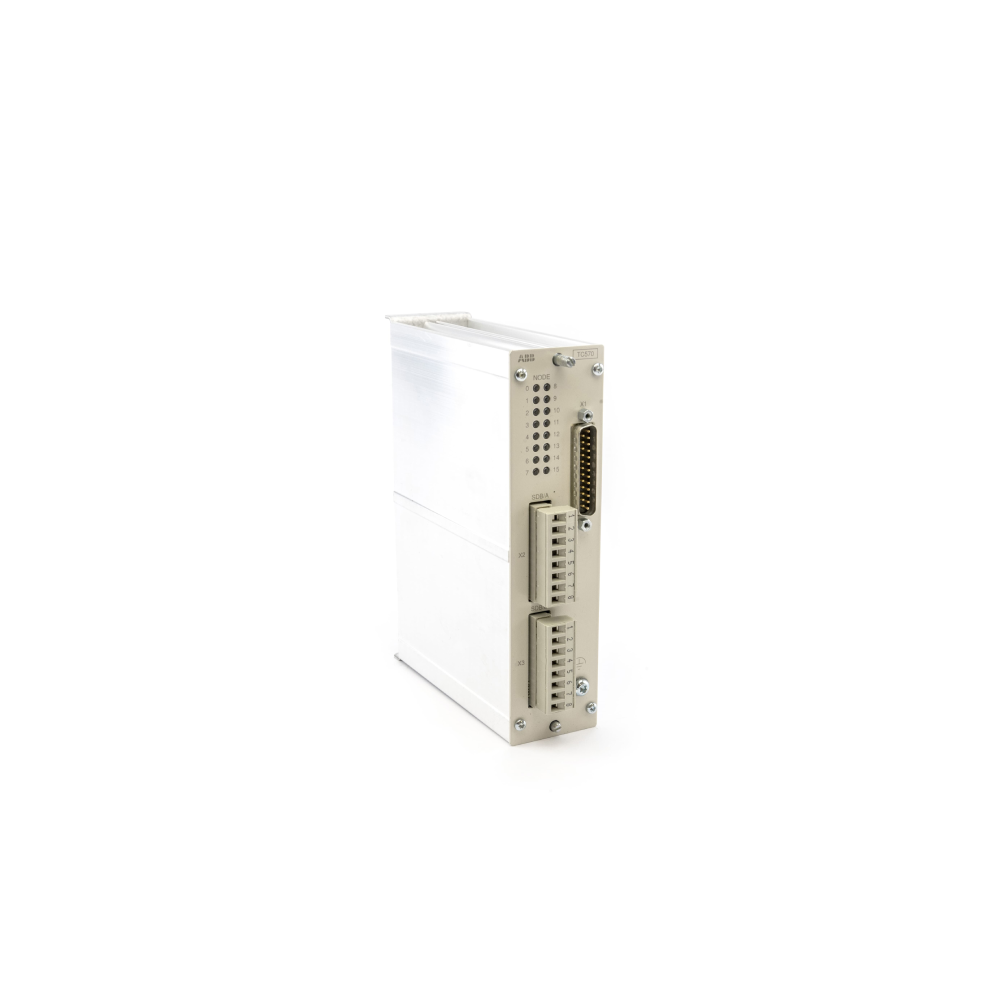

The ABB TC570 (3BSE001458R1) is a robust Master Fieldbus Connection Unit designed for seamless data communication within Advant Master Control Systems. It provides high-performance connectivity between controllers and field devices, ensuring stable and synchronized system operations. Built for industrial reliability, the TC570 supports communication modules in Advant Controller 410, 450, and 450RMC environments. Moreover, it meets EU Directive 2011/65/EU (RoHS) standards, ensuring long-term compliance and operational safety.
Key Features
- Reliable System Integration: Serves as the main interface between field devices and control systems for consistent communication performance.
- Wide Compatibility: Fully compatible with Advant OCS with Master SW, AC 400, and Advant Controller 450 series.
- Compact and Durable Design: Lightweight aluminum body with compact dimensions (216 × 144 × 54 mm) for space-efficient installation.
- Environmental Compliance: Designed to meet RoHS and WEEE Category 5 regulations for safe operation and recycling.
- Ease of Maintenance: Modular construction simplifies replacement, reducing system downtime during maintenance cycles.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 3BSE001458R1 |
| Type Designation | TC570 |
| Function | Master Fieldbus Connection Unit |
| Product Type | Communication Module |
| Compatible Controllers | Advant Controller 410 / 450 / 450RMC |
| Dimensions (L × W × H) | 216 × 144 × 54 mm |
| Weight | 0.75 kg |
| HS Code | 853890 |
| Tariff Code | 85389091 |
| Environmental Compliance | RoHS, WEEE Category 5 |
| SCIP Registration | bc59d90f-250d-4299-8e8c-750b244b6890 |
| Battery Requirement | None |
| Mounting Type | Panel or system rack integration |
| Associated Kits | CI570K01 / CI570K02 Master Fieldbus Controllers |
In addition, the TC570 is part of ABB’s Control & Communication module family, ensuring stable data transmission and easy integration with distributed control systems.
System Integration
The ABB TC570 Fieldbus Unit is engineered for Advant OCS and AC 400 communication systems. It supports multi-node fieldbus networks, enabling advanced control, monitoring, and diagnostics in complex industrial environments.
Typical Applications include:
- Process automation in chemical, oil & gas, and power generation industries.
- Distributed I/O management and data synchronization across multiple controllers.
- Reliable backbone communication for redundant control systems using the Advant Master software platform.
Therefore, it plays a crucial role in ensuring the real-time integrity and reliability of communication in mission-critical automation systems.
Details
| Weight | 0.75 kg |
|---|---|
| Dimensions | 5486 × 1372 × 3658 mm |
