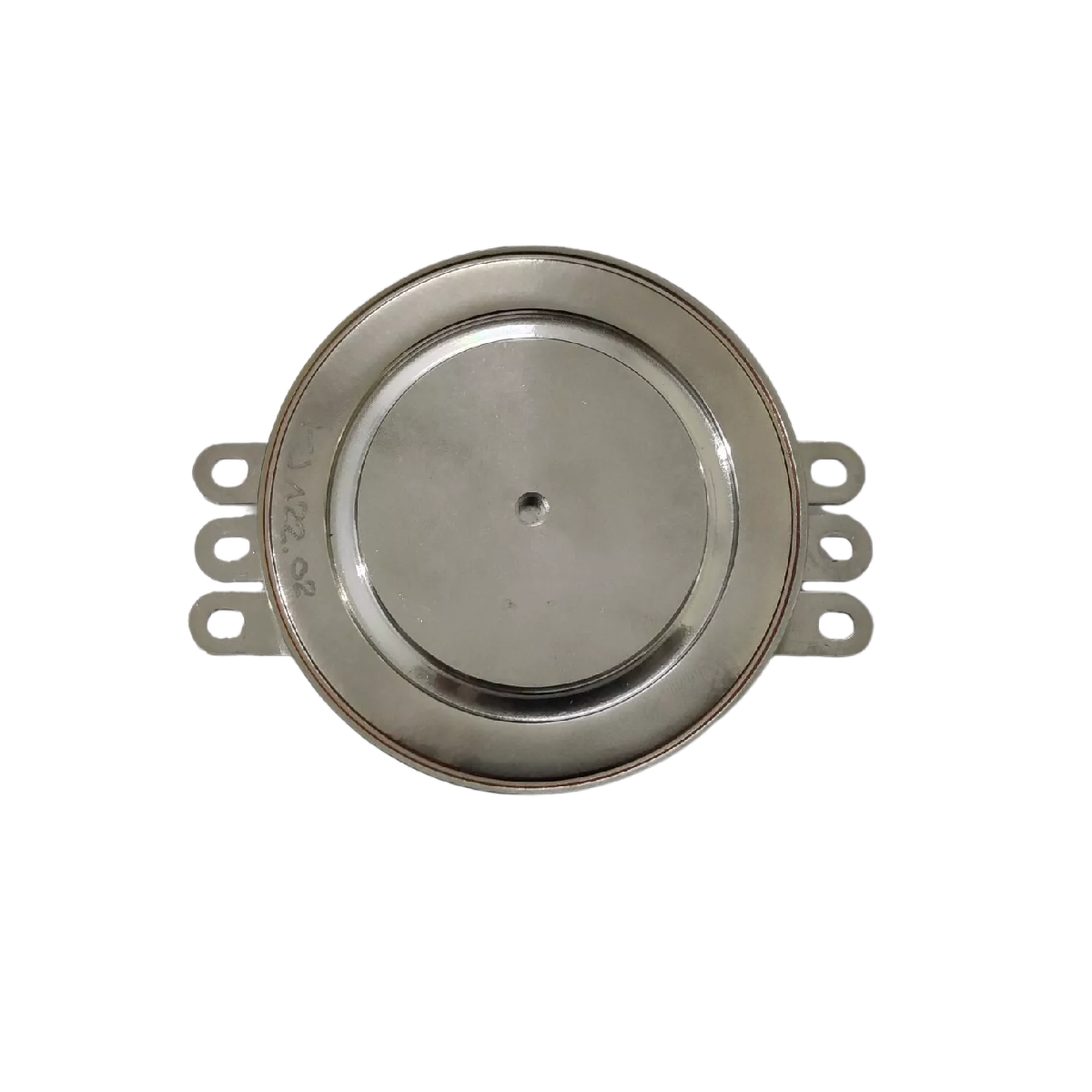

The ABB 3BHL000385P0101 | 5SHX0845F0001 IGCT Module is a high-efficiency power semiconductor designed for demanding medium-voltage drive applications. It integrates advanced gate-controlled thyristor technology for superior current handling and energy efficiency. This 51mm, 4.5kV insulated gate commutated thyristor (IGCT) ensures excellent switching performance, reduced losses, and extended system lifespan.

Moreover, its durable coating and robust structure make it suitable for long-term operation in industrial and high-stress environments, particularly within ABB ACS1000 drive systems.

Functional Highlights

• High Power Capacity: Supports up to 4.5kV operating voltage with reliable commutation control.
• Compact and Efficient: The 51mm diameter package allows optimal space utilization within power modules.
• Enhanced Durability: Coated surface provides improved insulation and protection against moisture and dust.
• Seamless Compatibility: Fully compatible with ABB medium-voltage drive systems, ensuring plug-and-play replacement.
• Stable Thermal Management: Efficient heat dissipation maintains system stability and longer service life.

Technical Specifications

In addition, the ABB 3BHL000385P0101 module replaces earlier versions, including HL000385P0101, HL000385P0001, and 3BHL000385P0001, ensuring backward compatibility with legacy systems.

System Integration

The ABB 5SHX0845F0001 IGCT module is primarily used in medium-voltage AC drives such as ACS1000, where precise power switching and efficient energy conversion are crucial.
It supports variable-speed drive applications in industries like:

• Oil & Gas Processing
• Mining and Cement Plants
• Power Generation Systems
• Marine Propulsion Drives

Therefore, it is an excellent choice for engineers seeking stability, long-term reliability, and high switching performance under continuous load conditions.
