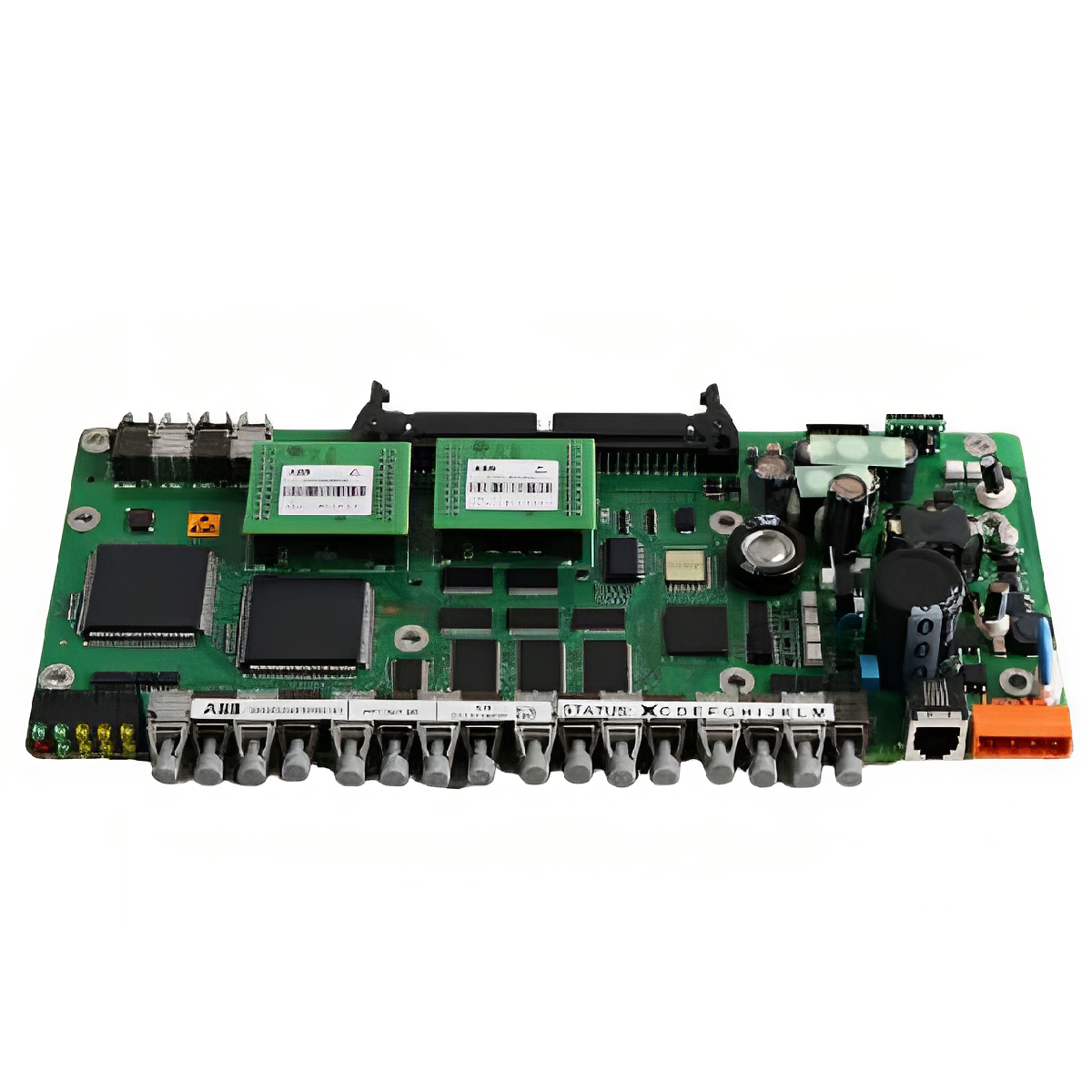

The ABB 3BHE024577R0101 is an Application & Motor Control Board (AMC-34) designed for medium voltage AC drives, including ACS1000, ACS2000, ACS5000, and ACS6000. Replacing the previous AMC-3 board, it offers enhanced motor control functionality and requires software configuration by an ABB service engineer.
General Information
- Product ID: 3BHE024577R0101
- ABB Type Designation: PP C907 BE: AMC34
- Catalog Description: Application & Motor Control Board
Ordering Information
- Core Credit: 0.00
- Country of Origin: Thailand (TH)
- Customs Tariff Number: 85049099
- Invoice Description: APPLIC&MOTORCTRL
- Made to Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Part Type: New
Replaced Product IDs (OLD):
- HIEE300885R0102
- HIEE300885R0101
- HIEE300885R0002
- EE300885R0101
- HIEE300885R0001
Stock Availability (Warehouses)
- FIPSEEXPU
- US Drive Services
- SGRDC002EXPU
- CNIAB001EXPU
- SGIND002EXPU
- AUABB024EXPU
Dimensions & Weight
- Product Net Weight: 0.4 kg
Technical Information
The AMC-34 board is delivered without software. A local ABB service engineer is required to download the correct software and configure the parameter settings. It replaces the AMC-3 board but cannot replace AMC-3 boards used in AMC6000c & CYCLO applications. For such cases, please contact ABB MV AC Supportline for assistance.
Compatible Drive Software Versions for AMC-34
- ACS1000: MSOH4400 or higher
- ACS6000SD: LSOH5000 or higher
- ACS6000AD: LAOH5000 or higher
- ACS6000ARU: LNOH5000 or higher
- ACS5000SD: LLOH5000 or higher
- ACS5000AD: LKOH5000 or higher
Application in ABB Medium Voltage AC Drives
The AMC-34 board is compatible with the following ABB medium voltage AC drives:
| Drive | Unit of Measure | Quantity |
|---|---|---|
| ACS 1000 | Piece | 1 |
| ACS 2000 | Piece | 1 |
| ACS 5000 Water Cooled | Piece | 1 |
| ACS 6000 | Piece | 1 |
Product Categories
- Parts & Services → Drives → Medium Voltage AC Drives → Industrial Drives → ACS2000
- Parts & Services → Drives → Medium Voltage AC Drives → Special Purpose Drives → ACS1000
- Parts & Services → Drives → Medium Voltage AC Drives → Special Purpose Drives → ACS5000
- Parts & Services → Drives → Medium Voltage AC Drives → Special Purpose Drives → ACS6000
Details
| Weight | 0.4 kg |
|---|
