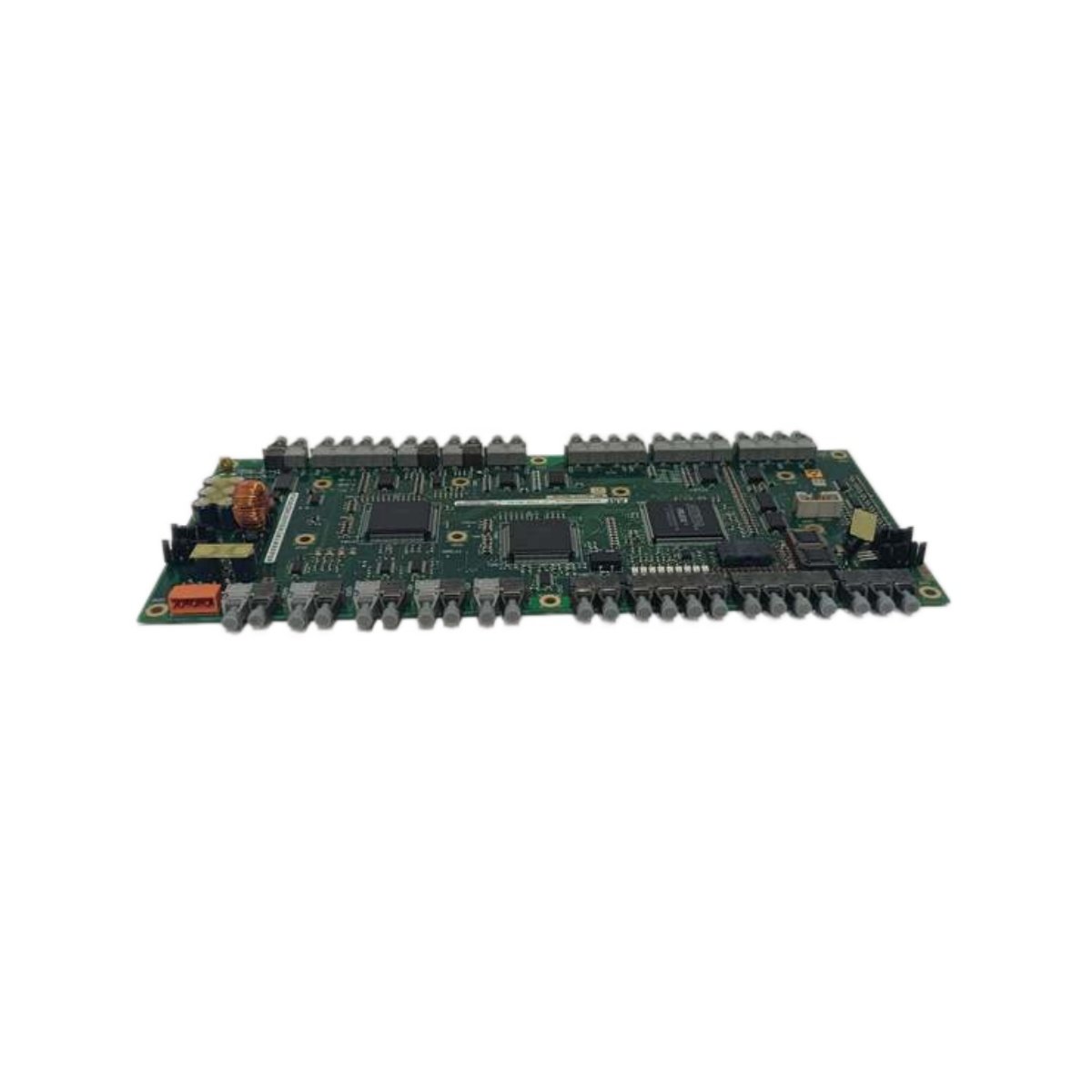

The ABB 3BHE004573R0142 (also known as UFC760BE142) is a purpose-built interface board for ABB’s ACS6000 medium-voltage drive family, specifically serving the INU rectifier unit . This module acts as the critical isolation bridge between the high-voltage power unit and the main control CPU . It manages signal acquisition, fiber-optic communication, and hardware fault latching for demanding industrial drive systems.

Technical Specifications

Core Functional Architecture

Engineers designed this interface board to perform four essential tasks within the drive system . First, it isolates and conditions signals from the high-voltage side, converting analog measurements from IGBTs and diodes into low-voltage signals for the main controller . Second, it transmits and receives fiber-optic gate pulses between the AC800PEC controller and the power unit’s driver board . Third, it manages multiple digital I/O points for cabinet contactors, cooling fans, temperature sensors, and emergency stops . Finally, it monitors for overcurrent, overvoltage, overtemperature, and fiber breaks, then immediately blocks trigger pulses and logs the event .

System Integration and Application

The ABB 3BHE004573R0142 operates within a larger control architecture: ACS6000 INU power unit → UFC760BE142 interface board → AC800PEC controller → upper DCS system . This board is not interchangeable with the UFC760BE143 (used for the PUB/PFF inverter side) due to different pinouts and firmware . Typical applications include high-voltage drives for mine conveyors, mine hoists, metal rolling mills, large fans, and power plant auxiliary systems . The robust construction and full coating ensure stable operation in harsh industrial environments.
