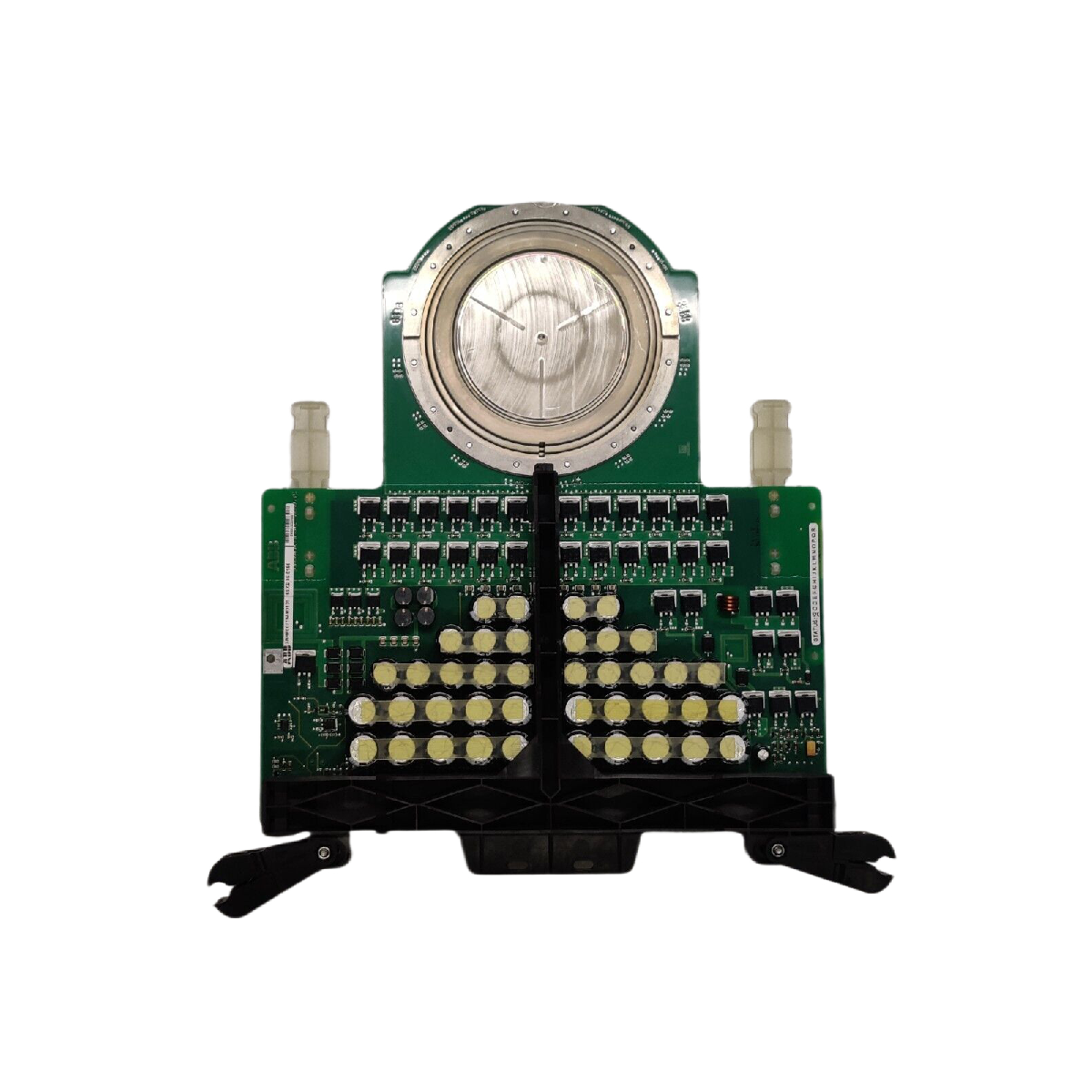

The ABB 3BHB003230R0101 control module combined with the 3BHL000392P0101 IGCT module (5SHX1060H0001) provides high-performance power control for medium voltage AC drives. This combination ensures reliable operation, fast switching, and seamless integration with ABB ACS1000 series drives.
Specifications
Control Module
| Parameter | Details |
|---|---|
| Brand | ABB |
| Product ID | 3BHB003230R0101 |
| Product Type | Control Module |
| Voltage Rating | 24 VDC |
| Current Rating | 5 A |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH |
| Communication Protocol | Modbus RTU |
| Weight | 1.2 kg |
| Dimensions (L × W × H) | 150 mm × 100 mm × 50 mm |
IGCT Module
| Parameter | Details |
|---|---|
| Product ID | 3BHL000392R0101 |
| ABB Type Designation | 5SHX1060H0001 |
| Product Description | IGCT Module |
| Rated Voltage | 6 kV |
| PCB Protection | Coated |
| Weight | 2.11 kg |
| Country of Origin | Switzerland |
| HS Code | 85413000 |
| Minimum Order Quantity | 1 piece |
| Stock Locations | FIPSEEXPU, US Drive Services, SGRDC002EXPU, CNIAB001EXPU, SGIND002EXPU, AUABB024EXPU |
Applications
- Medium voltage AC drives (ACS1000 series)
- Industrial motor drives
- HVDC systems, traction, and railway applications
- Static VAR compensators (SVCs)
- Wind and solar power inverters
Details
| Weight | 1.22 kg |
|---|
