Product Overview

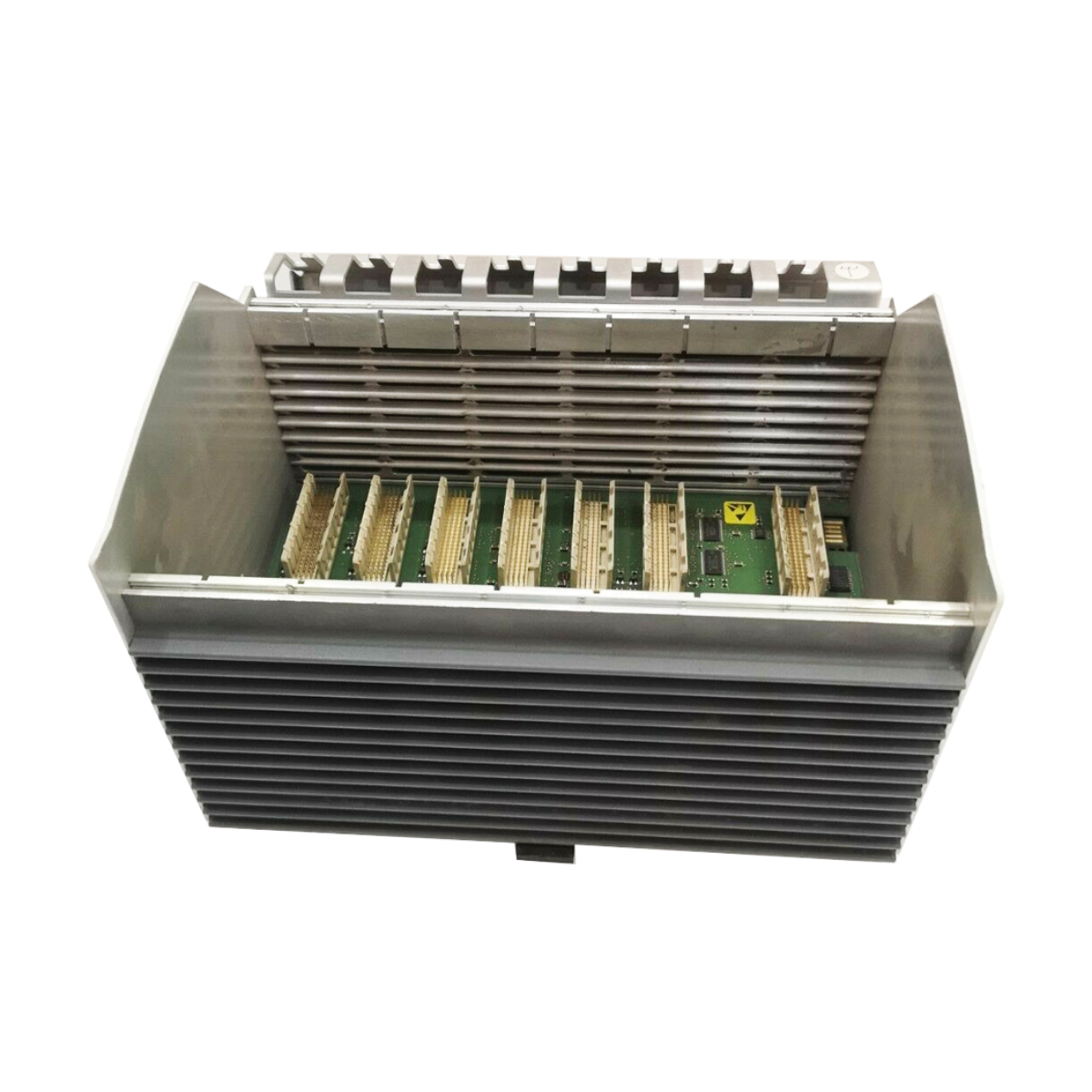

The ABB PM 803F Base Unit is a central processing module for the AC 800F control system.
It integrates the housing and CPU main board, offering 16 MB battery-buffered RAM.
The unit requires operating system installation during setup and includes the RW 855F Contact Ledge.
Compared to the previous PM 802F model, it delivers 5–10% lower performance.
Key Features
- 16 MB battery-buffered RAM
- Compatible with software version V7.1SP2a or higher
- Requires OS loading during installation
- Supplied with Contact Ledge RW 855F
- Slightly reduced performance compared with PM 802F
Technical Specifications
| Category | Details |
|---|---|
| General Info | Product ID: 3BDH000530R1 Type: PM 803F Description: Base Unit 16 MB |
| Dimensions | Depth: 164 mm Height: 202 mm Width: 239 mm Weight: 1.6 kg |
| Compliance | RoHS: Not Compliant WEEE Category: 5 (Small Equipment) |
| Battery Info | No batteries included |
| Regulatory | HS Code: 853890 Customs Tariff: 85371091 |
| SCIP Compliance | No SVHC present (Malta) |
Applications
The PM 803F Base Unit is designed for ABB AC 800F control systems.
It ensures reliable performance in automation and process control, making it suitable for demanding industrial environments that require stable processing and communication.
Details
| Weight | 1.6 kg |
|---|---|
| Dimensions | 239 × 202 × 164 mm |
