Product Overview

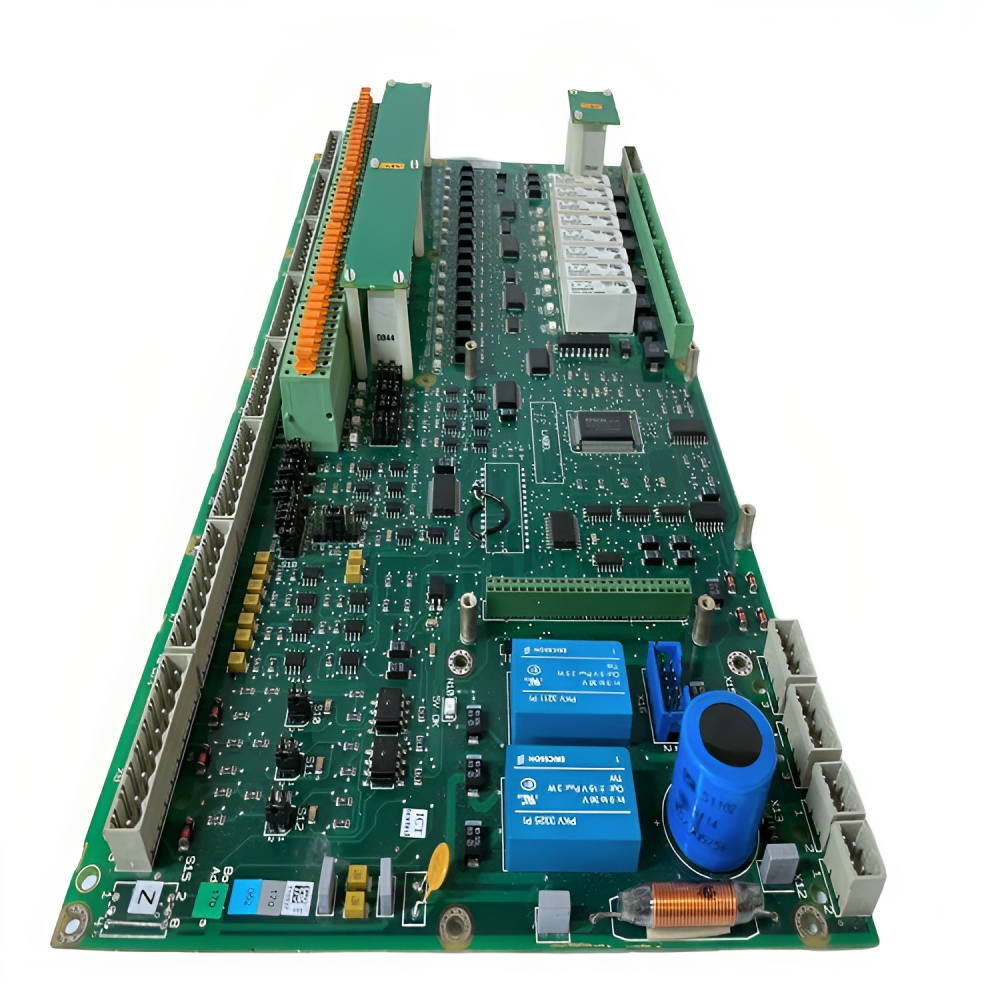

The ABB 3ASC25H203 DAPC 100 Control Board actively manages and controls ASTAT systems. It delivers advanced communication channels, seamless integration, and reliable control for thyristor modules. Furthermore, this board suits systems such as DARA 1000, 1001, and 1010 modules, supporting both vertical and horizontal communication protocols.

Key Features

Communication Channels:

• X5 Interface: Connects to a PC via multi-drop RS-485 or point-to-point RS-232 for configuration and monitoring.
• Opto Links:
  • Channel 1: Enables vertical communication with TCP/IP controllers or horizontal communication with other ASTAT systems.
  • Channel 2: Supports horizontal communication between ASTAT units.
  • Channel 3: Provides internal fiber connection to Process I/O via DAPU 100.

Power and Connectivity:

• 24 V DC Connection: Terminal X4 supplies internal power.
• Thyristor Module Control Cables:
  • X7: Routed via DATX 130 for DARA modules.
  • X8: Supports parallel thyristor modules.

Compatibility and Integration:

• Fully compatible with the ASTAT Tool application for parameter synchronization and configuration.
• Recovery procedures ensure seamless replacement and minimal downtime.

Replacement and Setup Procedure

When replacing a DAPC 100 board:

1. Prepare a PC with the ASTAT Tool application and a parameter file (*.ast) for the motion system.
2. Use Tool Cable 3ASC262741H1 (RS-232).
3. Provide a 24 V DC power supply (10 A for switched type, 2 A for linear type).
4. Use a terminal block (Phoenix 1777280 or the one from the existing board).
5. Remove all S2 jumpers and install all S3 jumpers on the new board.
6. Place Jumper S4 in position 7-8 for a communication rate of 115200 bps.
7. Connect the 24 V DC supply to the X4 terminal.
8. Connect the Tool cable to the board and the PC.
9. Configure the board via the ASTAT Tool, load the parameter file, and synchronize parameters.

Technical Specifications

Applications

The DAPC 100 Control Board actively manages industrial automation systems, controlling thyristor modules in dynamic and static setups. It ensures reliable process control and facilitates I/O communication in ASTAT-based configurations.

Spare Parts Availability

This control board is available as a spare part for maintenance or replacement in legacy ASTAT systems. While some modules are no longer supplied for new equipment, ABB continues to provide them as accessible spare parts.
