I/O modules

Product Overview

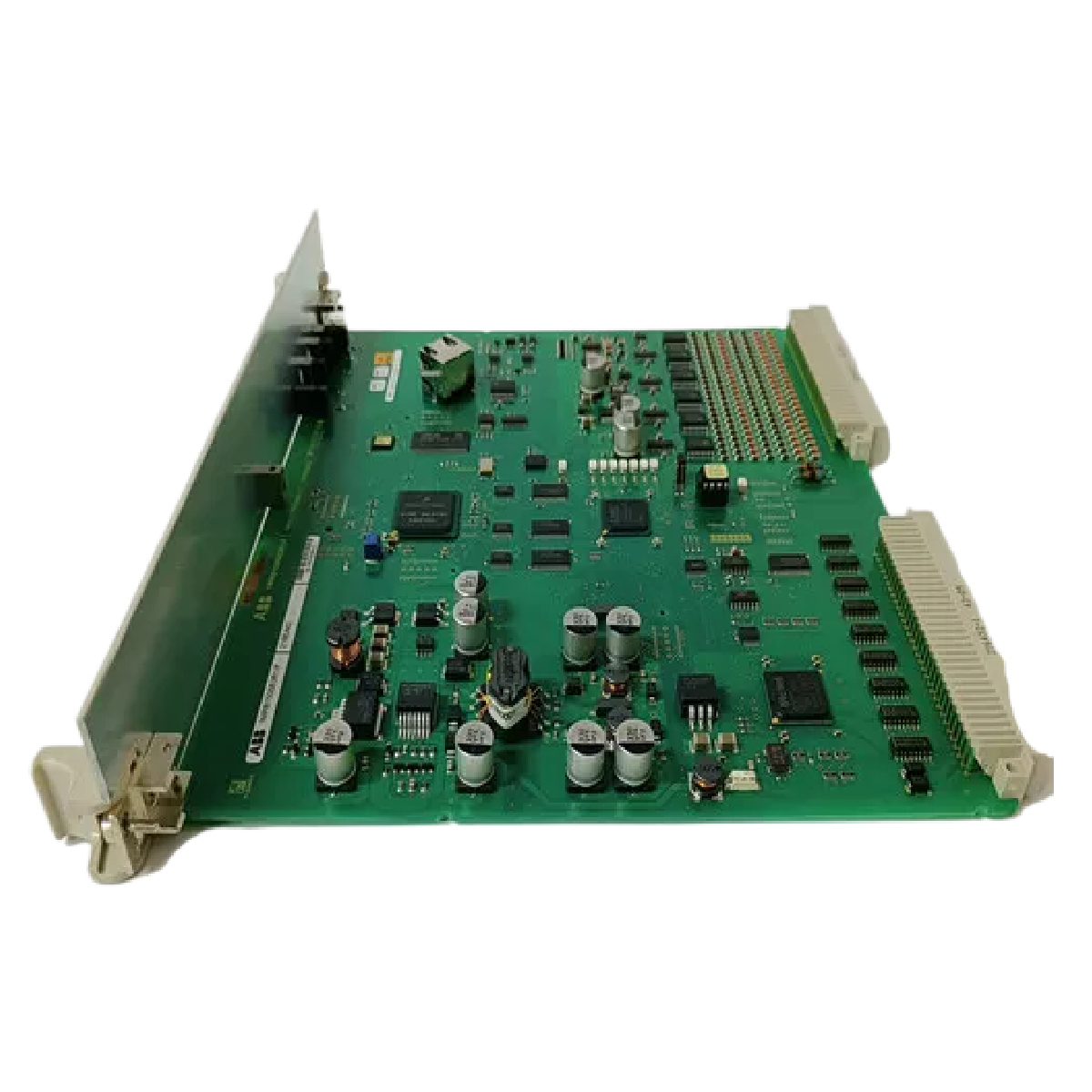

The ABB 216EA62 is an Analog Input Unit with A/D Converter.
It converts analog signals from various industrial devices into digital signals for process control.
This unit is essential for systems requiring precise and reliable signal processing.

Key Features

• Product ID: 216EA62
• ABB Type Designation: 1MRB150083R1/F, 1MRB178066R1/F
• Module Type: Analog Input Unit (A/D Converter)
• Input Channels: 24 channels (6 channels sampled simultaneously per group)
• Power Frequency: 50 Hz / 60 Hz
• Sampling Frequency: 600 Hz @ 50 Hz, 720 Hz @ 60 Hz
• Rack Space: Requires two rack partitions
• Input Devices:
  • RTD Inputs: Low-level resistance temperature detector signals
  • TC Inputs: Low-level thermocouple signals
  • Transmitter Signals: Standard high-level signals (4-20 mA, 0-5V, 0-10V)

Analog Input Classification

• Low-Level AI Devices: RTD and TC, for precise signal measurements
• High-Level AI Devices: Transmitter signals, read directly by the module

Digital Output Unit

• Outputs: 32 outputs to control auxiliary relays
• Protection: Short-circuit protection ensures safe operation

This module is suitable for industrial process control applications that require accurate signal conversion and reliable relay outputs.

Details
