Module Overview

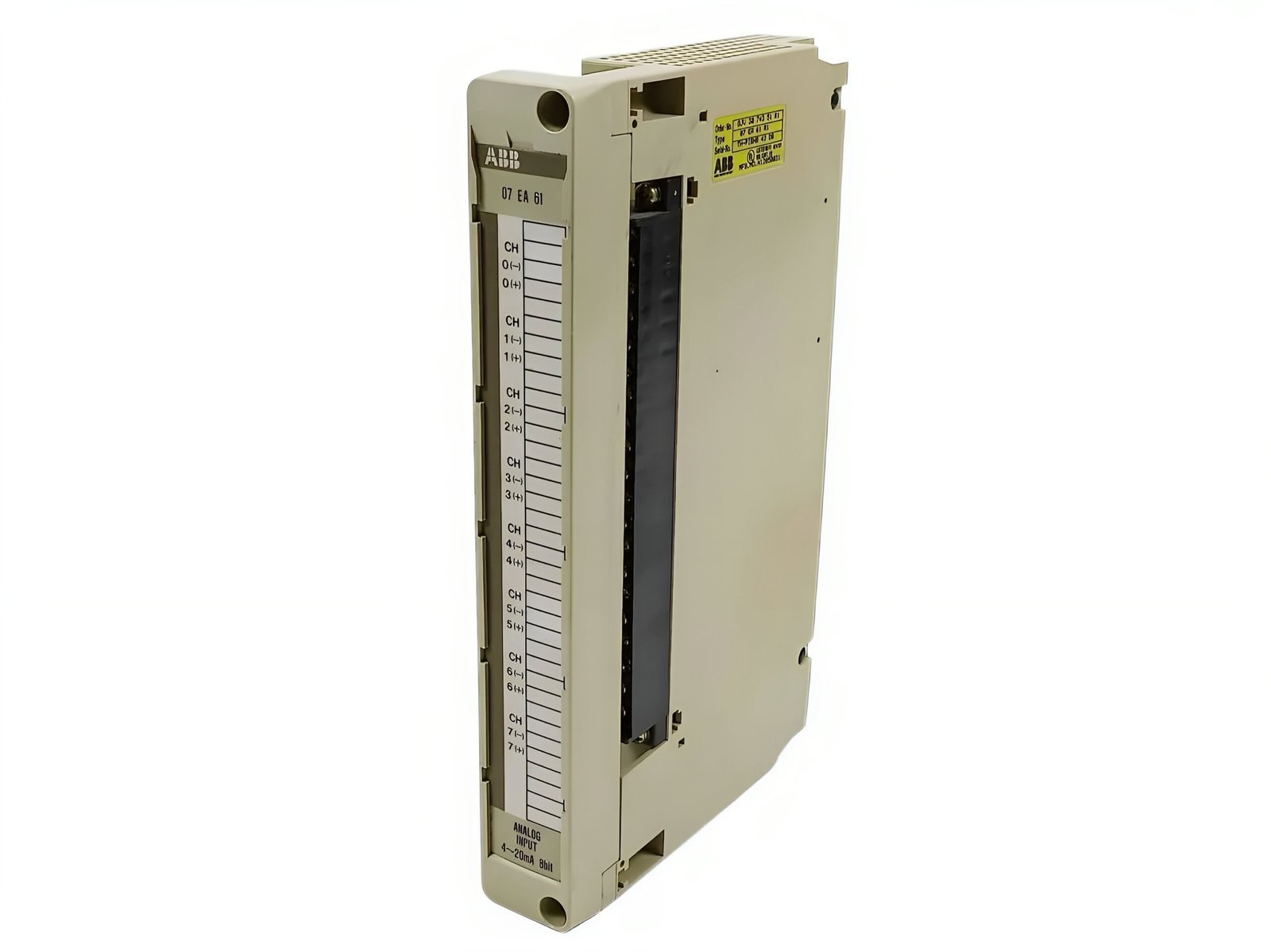

The ABB 07 EA 61 R1 (GJV3074351R1) is an 8-channel analog input module designed for high-precision process control systems. Each input converts 4–20 mA analog signals into digital binary values for processing by digital controllers.
Moreover, the module provides electrical isolation between analog channels, ensuring minimal interference and reliable signal acquisition even in electrically noisy environments. Channels 1–8 are monitored for open-circuit conditions using the ANAI or ANA11 function block.
In addition, its robust design allows seamless integration with ABB 907 PC 32 systems, enabling accurate and simultaneous monitoring of up to eight analog inputs.
Functional Highlights
- Channels: 8 independent analog input channels for simultaneous data acquisition
- Resolution: 8-bit, offering 256 discrete digital values for precise measurement
- Open-Circuit Monitoring: Detects interruptions in input signals to improve system reliability
- Electrical Isolation: Reduces interference risks and maintains signal integrity
- Conversion Rate: Fast 5 ms analog-to-digital conversion per channel
- Accuracy: Max 1% adjustment inaccuracy, ±½ LSB nonlinearity, and ±2.78 μA/K temperature coefficient
- Cable Length: Parallel shielded cables up to 50 m, two-core shielded cables up to 200 m
- Power Consumption: UB1 5V DC (60 mA) and UB4 24V DC (70 mA)
Furthermore, the ABB 07 EA 61 R1 ensures reliable analog input acquisition under challenging environmental conditions.
Technical Data
| Parameter | Specification |
|---|---|
| Product ID | GJV3074351R1 |
| Channels | 8 analog input channels |
| Input Range | 4–20 mA |
| Resolution | 64.8 μA (1 LSB) |
| Electrical Isolation | Yes, with common reference potential |
| Nominal Insulation Voltage | 60 V AC, tested up to 500 V AC |
| Power Dissipation | Max 1.98 W |
| Conversion Rate | 5 ms |
| Cable Requirements | Parallel shielded ≤50 m, 2-core shielded ≤200 m |
| Slot Occupied | 11/0 |
| Weight | 470 g |
| Configuration Identifier | EWB |
Therefore, this module provides a precise, isolated, and robust analog input solution for ABB industrial automation systems.
System Integration
The ABB 07 EA 61 R1 integrates efficiently with ABB 907 PC 32 systems and S800 I/O architectures. Its multiple input channels support real-time monitoring and control, enhancing process reliability.
Typical Applications:
- Industrial process control and automation
- Water and wastewater monitoring systems
- Oil and gas production and refining
- Chemical and pharmaceutical processing
- Power generation and distribution
Moreover, the module’s open-circuit monitoring and robust isolation simplify system diagnostics, reducing operational downtime.
Details
| Weight | 0.47 kg |
|---|
