Description

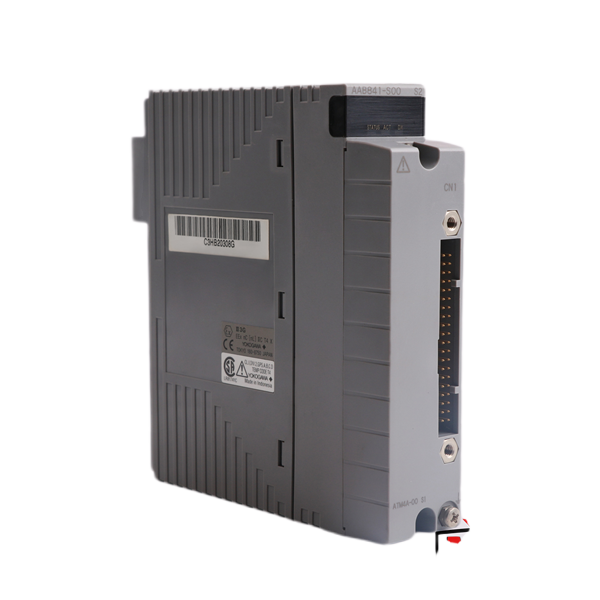

The Yokogawa AAB841-S00 is a high-accuracy analog I/O module engineered for advanced industrial automation systems. It features eight analog input channels and eight analog output channels, allowing flexible signal handling across a wide range of control applications.
Each input channel supports 1–5 V DC voltage signals, while the output section provides 4–20 mA DC current signals for precise field device control. Moreover, its compact design and low power consumption make it ideal for distributed control systems that require dependable analog signal processing.
Functional Highlights
- Dual Functionality: Combines both analog input and output channels in a single module for simplified wiring and reduced footprint.
- High Accuracy: ±4 mV for voltage inputs and ±48 µA for current outputs ensure stable signal integrity.
- Fast Response: Input step response of 100 ms and output response of 40 ms deliver real-time performance.
- Low Temperature Drift: Maintains accuracy within ±0.1% per 10°C, even under varying plant conditions.
- Flexible Connection Options: Supports pressure clamp terminals or KS cables for quick installation.
In addition, the module’s non-isolated architecture improves operational efficiency and reduces cost in compact system designs.
Technical Data
| Parameter | Specification |
|---|---|
| Model | AAB841-S00 |
| Type | Analog Input/Output Module |
| Channels | 8 AI + 8 AO |
| Input Range | 1–5 V DC |
| Output Range | 4–20 mA DC |
| Input Resistance (Powered) | ≥ 1 MΩ (voltage), 290–450 Ω (current) |
| Input Resistance (Unpowered) | ≥ 340 kΩ (voltage), ≥ 500 kΩ (current) |
| Accuracy | Input ±4 mV / Output ±48 µA |
| Power Consumption | 5 V DC @ 310 mA, 24 V DC @ 250 mA |
| Step Response | Input 100 ms / Output 40 ms |
| Temperature Drift | ±0.1% per 10°C |
| Isolation | Non-isolated |
| Termination | Pressure clamp or KS cable |
| Weight | Approx. 0.3 kg |
| Suffix Code | –S00 (Standard model) |
The AAB841-S00 maintains stable analog performance even in environments exposed to vibration or fluctuating ambient temperatures.
System Integration
The module integrates seamlessly into Yokogawa’s DCS and control platforms, offering consistent communication with other system components. It supports applications in:
- Process control systems for refineries, chemical plants, and power facilities.
- Data acquisition networks requiring reliable analog feedback.
- Industrial machinery control with tight precision and signal consistency.
- Instrumentation systems that demand synchronized analog input and output handling.
Therefore, engineers can confidently deploy the AAB841-S00 to enhance process efficiency and control accuracy.
FAQ
Q1: Is the Yokogawa AAB841-S00 compatible with other I/O modules in the same series?
Yes. It is fully compatible with other Yokogawa I/O modules and can operate within the same rack configuration for unified signal management.
Q2: What connection types are supported?
The AAB841-S00 accepts pressure clamp terminals and KS cables, allowing flexible installation in both new and retrofit systems.
Q3: What are the shipping and warranty terms?
All Yokogawa AAB841-S00 modules are 100% brand-new and original, available from stock. Orders ship via DHL, FedEx, or UPS within 3 days – 2 weeks, depending on quantity. A 30-day return policy applies for verified quality issues.
