Product Description

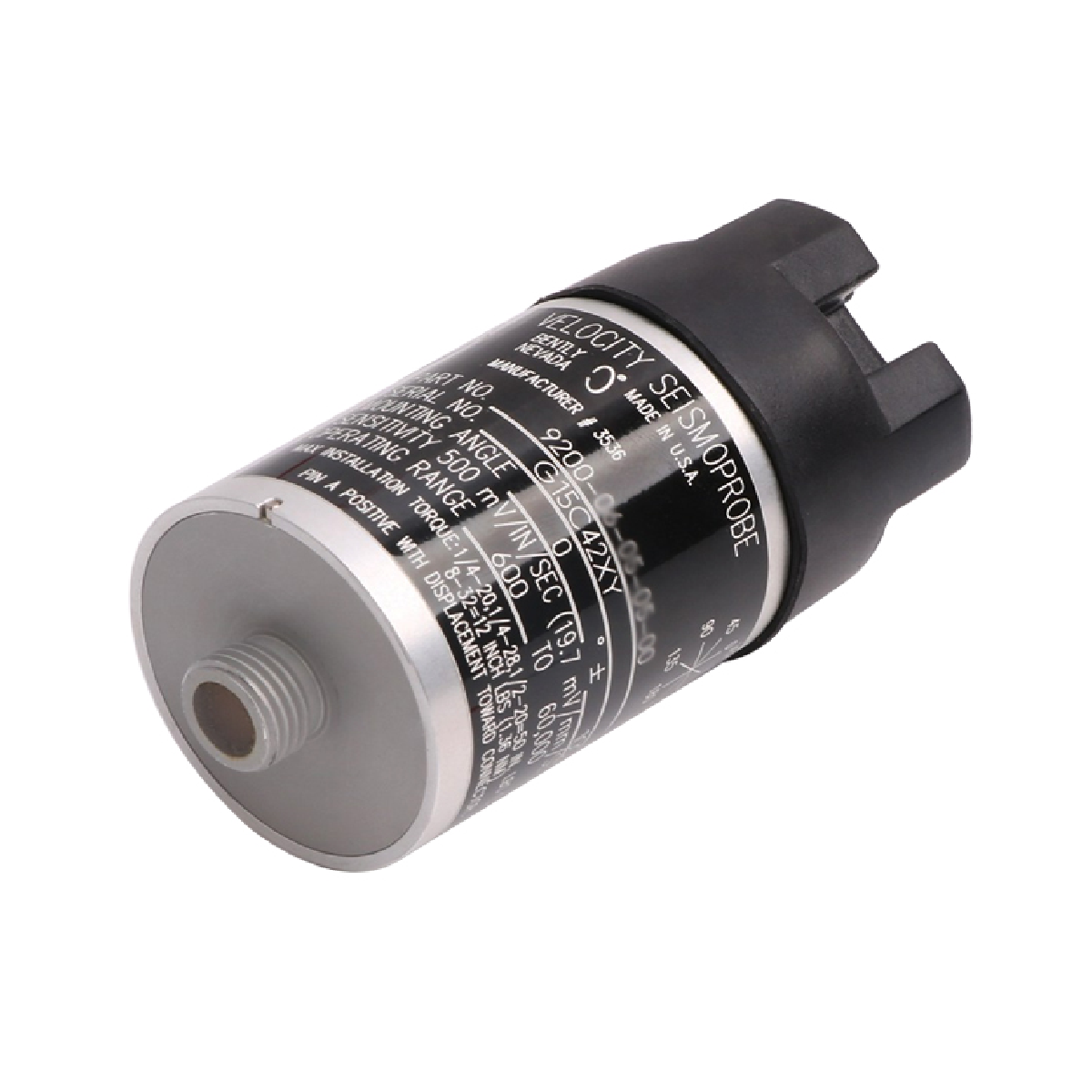

The Bently Nevada 9200-06-05-05-00 Two-Wire Transducer provides precise vibration monitoring for machinery. It supports continuous measurements or periodic testing with diagnostic instruments. When equipped with an integral cable, it resists corrosive environments without additional protection.
This transducer converts casing vibration into electrical signals. Its two-wire design simplifies connection to 3300 or 3500 monitoring systems, supporting lead lengths up to 305 meters (1,000 feet) with maintained signal fidelity.
Technical Specifications
| Specification | Details |
|---|---|
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Calibration Load | 10 kΩ between pins “A” and “B” |
| Sensitivity Temperature Coefficient | 0.2%/°C |
| Frequency Response | 4.5 to 1000 Hz (+0, -3 dB typical) |
| Dynamic Operating Range | 2.54 mm (0.100 in) peak-to-peak maximum displacement |
| Velocity Range | 25 mm/s (1 in/s) at +22°C, 100 Hz, 10 kΩ load |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked Coil Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100 Hz |
| Shock Resistance | Withstands 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% of sensitive axis at 100 Hz, 1 in/s |
| Polarity | Pin A positive relative to Pin B when case moves toward connector |
| Lead Wire Length | Maximum 305 m (1,000 ft) to 3300/3500 monitor |
Environmental Limits
- Operating Temperature: -29°C to +121°C (-20°F to +250°F)
- Storage Temperature: -29°C to +121°C (-20°F to +250°F)
- Relative Humidity: Up to 95%, non-condensing; 100% non-submerged with integral cable
Ordering Information
Model Number: 9200-06-05-05-00
- A: Transducer Mounting Angle/Minimum Operating Frequency Option → 06 0 ±100, 10 Hz (600 cpm)
- B: Connector/Cable Option → 05 Terminal block top mount (no cable)
- C: Mounting Base Option → 05 No base; 1/2-20 UNF-3A stud
- D: Agency Approval Option → 00 No Approvals
The Bently Nevada 9200-06-05-05-00 Two-Wire Transducer ensures reliable vibration measurement for industrial machinery. It integrates seamlessly with Bently Nevada monitoring systems, providing accurate data for predictive maintenance and operational safety.
Details
| Weight | 0.1 kg |
|---|
