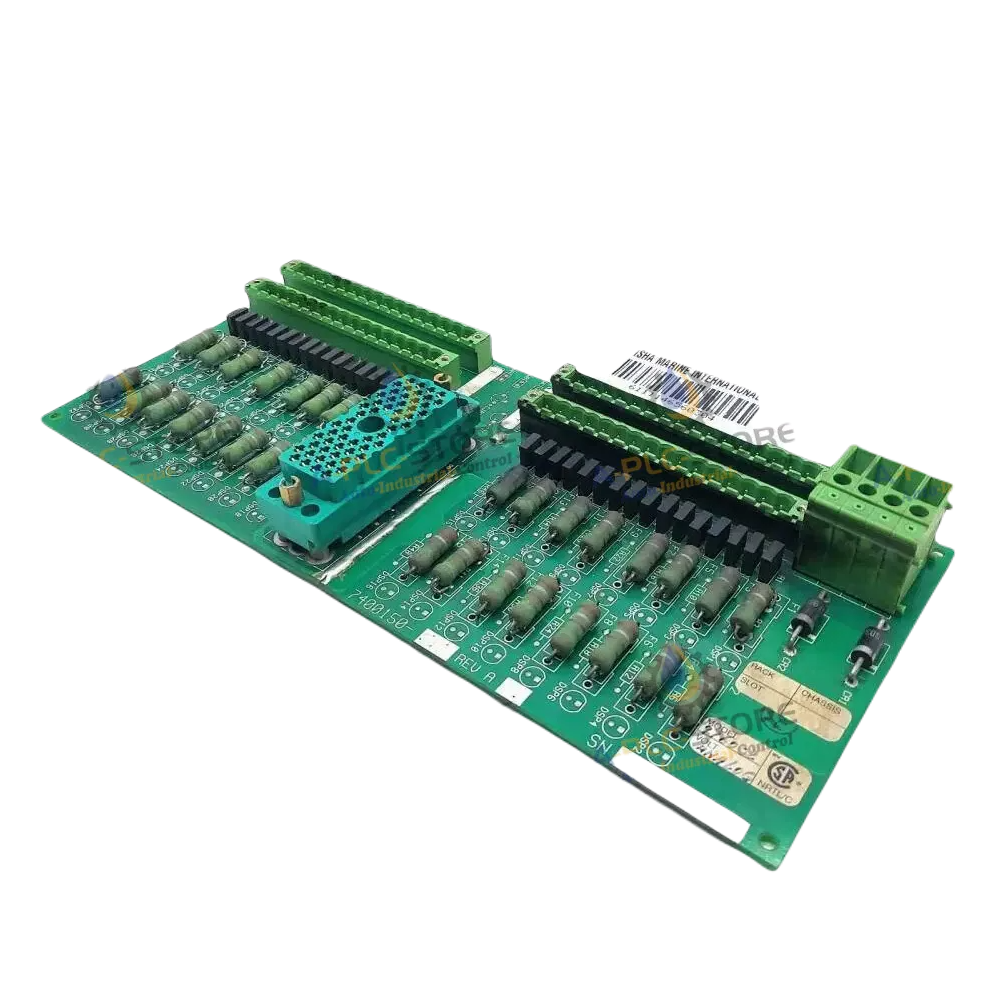

The Triconex 7400221-100 Model 2381 Pulse Input Baseplate (PI2381) is a durable module designed for industrial pulse input systems. It provides reliable connectivity and flexible integration for sensors, actuators, and I/O devices.

Robust Terminal Block Design

The PI2381 includes three types of terminal blocks: configuration, sensor, and resistor, each optimized for system performance and sensor compatibility.

• The configuration block allows selection between passive or active magnetic sensors and enables internal pull-up resistor activation.
• The sensor block connects sensors directly to the baseplate, simplifying wiring.
• The resistor block accommodates termination resistors for passive sensors and pull-up resistors for active open-collector sensors.
• Factory default settings preset configuration blocks to differential mode and sensory blocks as spares with shorted inputs.

Fault Current Specifications

Sensor Connection Examples

The PI2381 supports multiple sensor types:

• Passive magnetic sensors connected to designated points.
• Active open-collector sensors with internal resistors.
• Active sensors connected via assigned points for reliable pulse inputs.
• Unused points must be terminated according to installation guidelines.

Field Integration and Schematics

The 7400221-100 Model 2381 provides simplified schematics and field connection diagrams for quick wiring. Users can connect sensors and configure terminal blocks according to system requirements.

Key Features and Highlights

• Compatible with passive, active, and open-collector sensor designs.
• Robust terminal blocks support configuration, sensor, and resistor connections.
• Supports fault currents up to 130 mA typical and 200 mA maximum.
• Simplified schematics and field diagrams reduce installation errors.
• Flexible configuration allows adaptation to various industrial automation systems.

Technical Diagram References

• Simplified schematic illustrates baseplate layout and connections.
• Field connection diagrams show wiring for all sensor types.
• Terminal block pin-outs enable precise integration for pulse input applications.
