Description

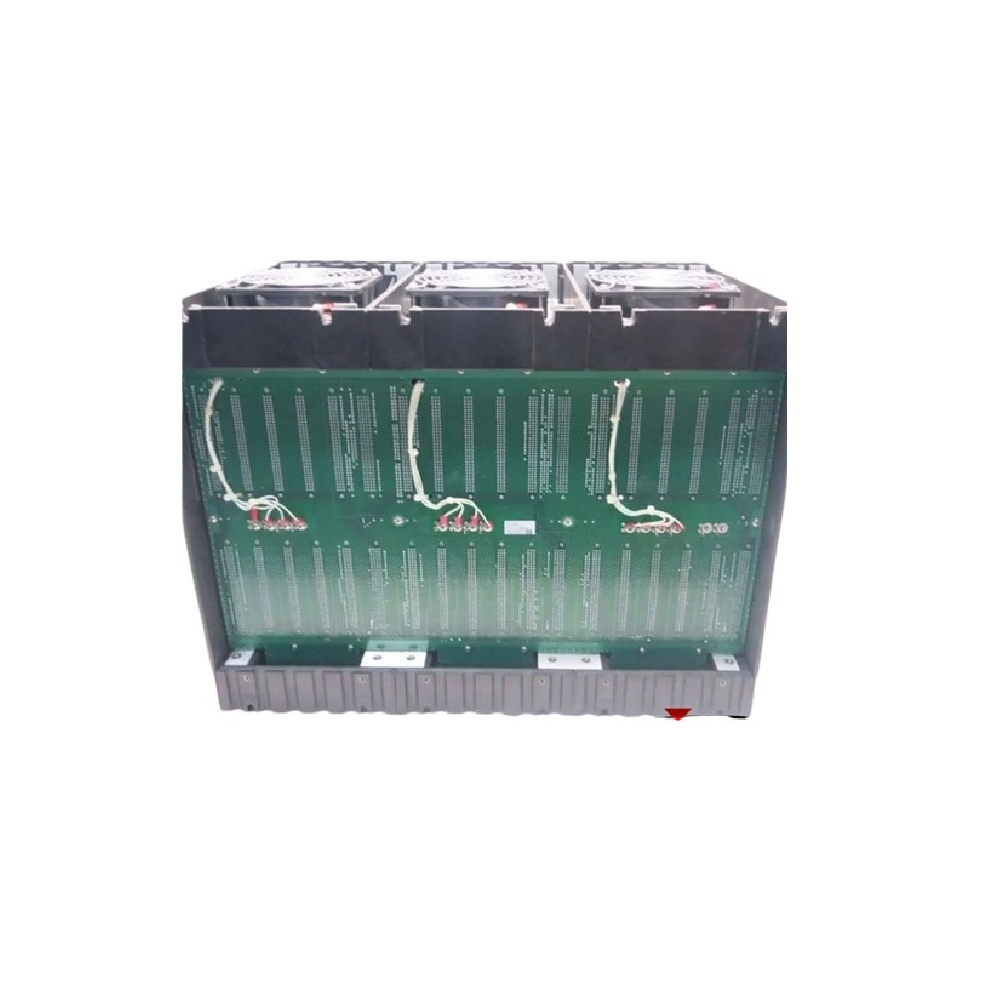

The Woodward 5453-279 MicroNet TMR Chassis serves as the backbone for Triple Modular Redundant (TMR) systems, designed to support mission-critical applications. This chassis accommodates kernel power supplies, CPUs, and up to twelve I/O modules, providing scalability and flexibility for complex control systems.

The chassis is compatible with two processor types:

• TMR5200 Processors: Enable shared I/O across multiple chassis via RTN networks, supporting expansion and increased system flexibility.
• TMR040 Processors: Utilize transceivers and cables for dedicated connections, ensuring each CPU has exclusive access to the I/O modules.

Key Features

• Processor Compatibility:
  • TMR5200 Processors: Share I/O across multiple chassis via RTN networks.
  • TMR040 Processors: Dedicated I/O connections for exclusive access per CPU.
• Power Supply Slots: Includes slots for kernel power supplies, ensuring all system components receive reliable power.
• CPU Slots: Accommodates processors that handle system control and computational tasks.
• I/O Module Slots: Provides space for up to twelve I/O modules for communication and control with external devices and sensors.
• Expansion Options:
  • TMR5200 Processors support scalable expansion with shared I/O across multiple chassis.
  • TMR040 Processors require dedicated I/O connections using transceivers.

Specifications

• Part Number: 5453-279
• Manufacturer: Woodward
• Product Type: MicroNet TMR Chassis
• Availability: In Stock
• Country of Manufacture: United States (USA)

Applications

The MicroNet TMR Chassis is designed for high-performance and high-reliability control systems. It is ideal for critical applications in industries such as power generation, process control, and automation, ensuring robust performance, flexible expansion, and efficient I/O management.
