Overview

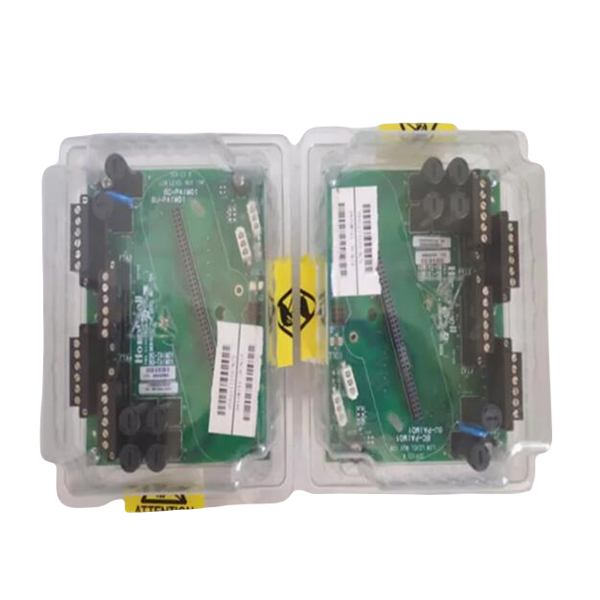

The 8C-TAIM01 Low Level Analog Temperature Input (LLMUX IOP module) manages up to 64 temperature channels. It integrates with Honeywell’s PMIO LLMUX FTA, each FTA supporting 16 channels. Users can mix RTD, Thermocouple (TC), and millivolt (mV) inputs. This module provides precise temperature measurement and seamless Honeywell system integration.
Key Features
- Flexible Temperature Sensing: Supports thermocouples and RTDs for industrial applications.
- Remote Cold Junction Compensation (CJC): Ensures readings remain accurate at connection points.
- Open Thermocouple Detection (OTD): Protects against errors caused by open thermocouples.
- 1-Second PV Scanning: Measures all channels every second without delaying system response.
- Expandable Channels: Add temperature points in increments of 16 for scalable design.
Temperature Support
The LLMUX system collects data from all temperature points every second. Solid-state PMIO LLMUX FTA modules handle both RTD and Thermocouple (TC) inputs. Open thermocouples set the process variable (PV) to NaN, preventing control errors and maintaining system reliability.
Sampling and Open Sensor Detection
The module verifies sensor integrity before PV propagation. With OTD active, PV is sampled and analyzed within the same measurement window. Detected faults set PV to NaN and trigger soft failures. This mechanism avoids invalid readings while maintaining measurement speed.
Technical Specifications – Low Level Input Multiplexer
| Parameter | Specification |
|---|---|
| Input/Output Model | 8C-PAIM01, LLMUX, Coated 8U-PAIM01, LLMUX, Uncoated |
| IOTA Models | 8C-TAIM01, Coated 8U-TAIM01, Uncoated |
| FTA Models | MC-TAMT04, MC-TAMR04 |
| Input Type | Thermocouple and RTD |
| Input Channels | 64 fully isolated channels, increments of 16 |
| Input Scan Rate | 1 second fixed by IOM (up to 64 channels/sec) |
| Input Range (TC only) | -20 to +100 mV |
| Normal Mode Input Range | -10 to +10 V (TC); -1 to +2 V @ 100 mA (RTD) |
| Gain Error | 0.050% full scale (-20 to +100 mV) |
| Temperature Stability | ±20 ppm/°C for TC, mV, and RTD inputs |
| Input Impedance | 1 MΩ at DC (TC) |
| Cold Junction Compensation | -20°C to +60°C (±0.5°C typical) |
| RTD Sensor Excitation Current | 1 mA |
| Surge Protection | EN 61000-4-5 (1kV line-line, 2kV line-ground) |
| Max Cable Distance | 1000 ft (16 AWG, two twisted pairs per FTA) |
| Supported RTD Types | Pt100 (DIN 4376, JIS C-1604), Ni120, Cu10 |
| Supported Thermocouple Types | ANSI J, K, E, T, B, S, R, and more |
| Open Thermocouple Detection | ≤1000 Ω no-trip; ≥1500 Ω guaranteed trip |
| RTD Max Lead Resistance | 15 Ω |
| FTA Dimensions | 2.5 D x 4.9 W x 12.1 L in (63.5 D x 124.46 W x 307.34 L mm) |
FAQ
Q1: Is the Honeywell 8C-TAIM01 module brand new and original?
A1: Yes, the 8C-TAIM01, Part Number 51306999-175, is fully original and brand new.
Q2: How quickly does the module scan temperature channels?
A2: It scans all 64 channels every second, providing fast and accurate measurements.
Q3: Can I expand the number of temperature points later?
A3: Yes, channels can be added in increments of 16 for scalable system expansion.
Q4: What shipping methods are used?
A4: We ship via DHL and other carriers, with delivery times from 3 days to 2 weeks.
Q5: What if a sensor fails during operation?
A5: Open thermocouples or faulty RTDs set PV to NaN and trigger a soft failure to prevent errors.
