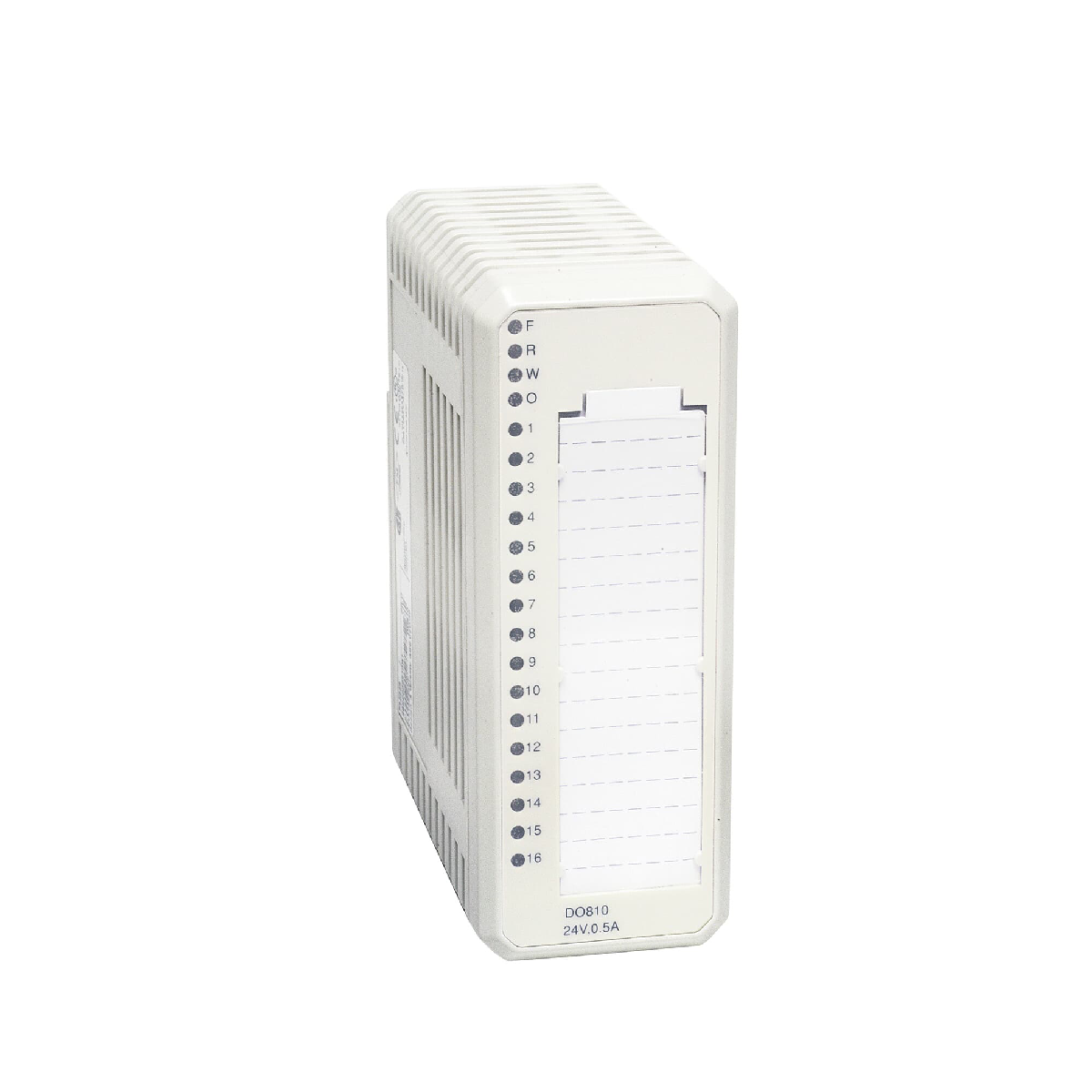

The ABB DO810 is a 16-channel, 24V digital output module designed for the S800 I/O system. With two electrically isolated channel groups and built-in short-circuit protection, it offers high performance and long-term reliability in demanding industrial automation environments.
Key Specifications
- Model: 3BSE008510R1 / DO810
- Number of Output Channels: 16
- Voltage: 24V DC
- Output Current: 0.5A per channel
- Channel Isolation: Two isolated groups (8 channels each)
- Short-Circuit Protection: Yes
- Compatible Terminal Units: TU810, TU812, TU814, TU830, TU833
- Net Weight: 0.2 kg
- Dimensions (mm): 102 (D) x 119 (H) x 45 (W)
Applications
- Output control for digital signals in S800 I/O systems
- Used in process automation, factory automation, and distributed I/O systems
- Suitable for redundant and non-redundant I/O configurations
System Compatibility
- S800 I/O 4.0 / 4.1 / 5.0 / 5.1
- ABB 800xA control system
- Advant OCS with Master SW / MOD 300 SW
- Compact Product Suite
- Advant Fieldbus 100
Compliance & Environmental Information
- RoHS: Complies with EU Directive 2011/65/EU
- WEEE Category: Small equipment (no external dimension > 50 cm)
- SCIP Reference: a4ec8c6b-d7ec-494e-9026-0072428052a0
- Batteries Included: No
Ordering & Classification
- HS Code: 853890
- Customs Tariff Number: 85389099
- Minimum Order Quantity: 1 unit
- Country of Origin: Sweden (verify on packaging)
Classification Codes
- eClass: 27-24-26-02
- UNSPSC: 32151703
- Product Type: I/O Module
Details
| Weight | 0.2 kg |
|---|
