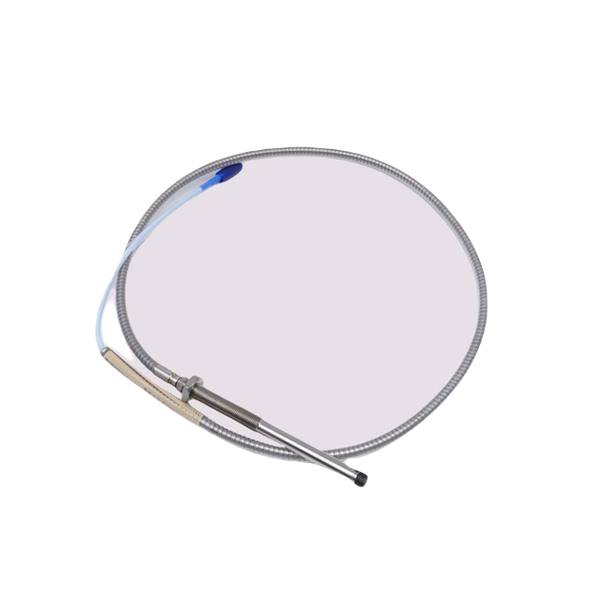

The Bently Nevada 330104-00-06-05-01-05 is a 3300 XL 8 mm Probe designed for precise vibration and position measurements in industrial applications. Manufactured with high-quality materials, it ensures reliable operation under demanding environmental conditions.
This probe features an M10 x 1 thread, armored stainless steel construction, and durable coaxial ClickLoc connectors. Users can select multiple length and approval options to match system requirements.
Key Features
- 8 mm probe designed for proximity measurements
- FEP insulated triaxial cable for standard applications
- PFA insulated cable available for extended temperature environments
- Optional AISI 302 or 304 stainless steel armor with FEP jacket
- CSA, ATEX, and IECEx agency approvals for global use
- High tensile strength and torque-tested case design
Technical Specifications
| Feature | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330104-00-06-05-01-05 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Cable Type | 75Ω triaxial, FEP or PFA insulated |
| Armor Option | Flexible AISI 302/304 SST with FEP jacket |
| Cable Length Options | 0.5, 1, 1.5, 2, 3, 5, or 9 m |
| Tensile Strength | 330 N (case to lead), 270 N (lead to connector) |
| Connector Material | Gold-plated brass or beryllium copper |
| Probe Case Torque | Up to 33.9 N•m (300 in•lbf) |
| Agency Approvals | CSA, ATEX, IECEx |
Ordering Information
The 330104 probe follows a structured ordering code:
- A – Unthreaded Length Option: Example 00 = 0 mm (must be 20 mm less than case length)
- B – Overall Case Length Option: Example 06 = 60 mm (range: 20 mm – 250 mm)
- C – Total Length Option: Example 05 = 0.5 m (5 m versions require matching Proximitor sensor)
- D – Connector & Cable Type Option: Example 01 = Miniature coaxial ClickLoc connector with protector
- E – Agency Approval Option: Example 05 = CSA, ATEX, IECEx approvals
Details
| Weight | 0.3 kg |
|---|
