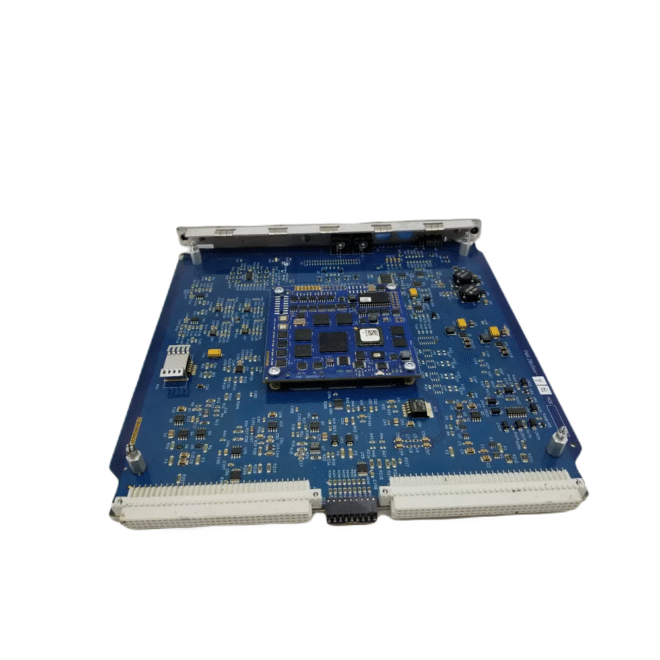

The Bently Nevada 286566-02 is a high-performance 3500/50M Tachometer Module designed for shaft speed and rotor acceleration monitoring. It supports proximity probes or magnetic pickups to track rotation direction and velocity precisely.
This module triggers alarms based on user-programmed setpoints and supports configurable monitoring options, including speed bands, zero-speed detection, rotor acceleration, and reverse rotation notifications. Additionally, it generates Keyphasor signals for other system monitors, eliminating the need for a separate Keyphasor module.
The module includes a peak hold feature, storing maximum speed, reverse speed, and reverse rotation counts. Users can reset these values when necessary.
Key Features
- 2-channel 3500/50M Tachometer Module for industrial speed monitoring
- Accepts proximity probe or magnetic pickup inputs, 1–2 signals per module
- Programmable alarm setpoints for speed, acceleration, and reverse rotation
- Generates Keyphasor signals for synchronized system monitoring
- Peak hold function tracks maximum rotor speed or reverse rotations
- Front panel LEDs indicate OK, TX/RX communication, and bypass mode
- Lightweight and compact: 0.82 kg, dimensions 241.3×24.4×241.8 mm
Technical Specifications
| Feature | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 286566-02 |
| Product Type | 3500/50M Tachometer Module |
| Inputs | 1–2 signals from proximity probes or magnetic pickups |
| Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ (Standard), 40 kΩ (TMR), 7.15 kΩ (Internal Barrier) |
| Power Consumption | 5.8 W typical |
| Outputs | Buffered transducer coaxial, recorder +4 to +20 mA, 24 Vdc power supply |
| Output Impedance | 550 Ω |
| Signal Conditioning | 1–255 events/rev for speed channels; up to 20 kHz frequency |
| Maximum Full-Scale Range | 99,999 rpm |
| RPM Accuracy | <100 rpm: ±0.1 rpm; 100–10,000 rpm: ±1 rpm; 10,000–99,999 rpm: ±0.01% |
| RPM/Min Accuracy | ±20 rpm/min |
| Physical Dimensions | 241.3 mm × 24.4 mm × 241.8 mm (9.50 × 0.96 × 9.52 in) |
| Weight | 0.82 kg (1.8 lb) |
| Operating Temperature | -30 ºC to +65 ºC (-22 ºF to +150 ºF) |
| Storage Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
Configuration Options
The Bently Nevada 3500/50M module supports multiple programmable monitoring modes:
- Speed Monitoring, Setpoint Alarming, and Speed Band Alarming
- Speed Monitoring, Setpoint Alarming, and Zero Speed Notification
- Speed Monitoring, Setpoint Alarming, and Rotor Acceleration Alarming
- Speed Monitoring, Setpoint Alarming, and Reverse Rotation Notification
Details
| Weight | 0.82 kg |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
