Overview

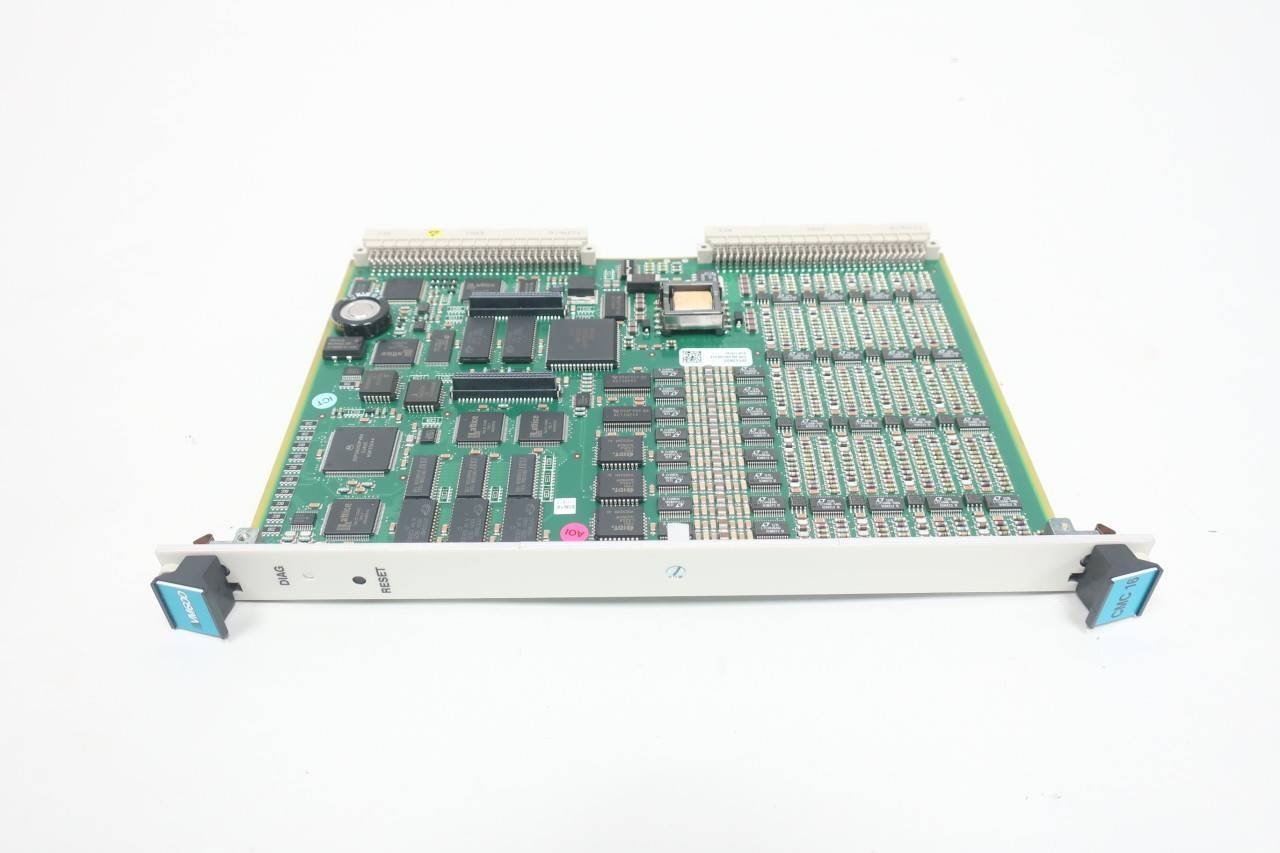

The Vibro-Meter 200-530-025-014 CMC 16 card is a core module of the VM 600 series condition monitoring system. It functions as an intelligent data acquisition unit, capturing vibration, speed, and process signals with high precision. The module works with VM600 CMS software and communicates through CPU M Ethernet or serial links for reliable integration.
Key Features
- Fully programmable inputs for speed, vibration, pressure, and rotor profiles
- On-board signal conditioning with 16 programmable anti-aliasing filters
- High-resolution acquisition for waveforms, orbits, and spectra
- Transient mode for dense data logging during critical machine events
- Supports adaptive alarm set points with real-time data processing
Input Specifications
| Parameter | Details |
|---|---|
| Speed/Phase Inputs | 1–24 V pulse, 0.25–10,000 Hz |
| Maximum Pulses/Rev | 128 for speed, 1 for phase |
| Machine Speed Resolution | ±1 RPM |
| Vibration/Analog Inputs | 14-bit A/D, 100 kHz sampling |
| AC Input Range | 0.1–20 V FSD, accuracy ±1% |
| DC Input Range | ±24 V FSD, thermocouple 61.022 mV |
| Frequency Span | Up to 20 kHz |
| Signal-to-Noise Ratio | >70 dB at 10 kHz, >60 dB at 20 kHz |
| Crosstalk Isolation | < -75 dB |
Logging and Acquisition
| Mode | Range / Capability |
|---|---|
| Order Tracking (Sync) | 15 RPM to 30,000 RPM, span 1.56–400 orders |
| Fixed Frequency | 0–20 kHz |
| FFT Resolution | 400 lines |
| Real-Time Sampling | 2.56 × span |
| Scheduled Logging | 1 minute to 59 hours |
| Transient Recording | Up to 18 hours 12 minutes, 200 ms minimum interval |
| Buffer Memory | 1 MB RAM, 26,200 trend values |
Processing and Communication
| Component | Details |
|---|---|
| Microcontroller | Zilog Z8S180 |
| DSP | Motorola 56002 |
| Communication Type | VMEbus to CPU M or RS-485 multi-drop |
| Transmission Rate | 19200 / 38400 Baud |
| Max PC Distance | 1220 m (4000 ft) without repeaters |
Power and Environmental Ratings
| Parameter | Value |
|---|---|
| Supply Voltage | 5 VDC ± 5% |
| Power Consumption | 15 W |
| Operating Temperature | –25 °C to +65 °C |
| Survival Temperature | –40 °C to +85 °C |
| Humidity | 0–90% operating, up to 95% survival |
Physical Dimensions
| Parameter | Value |
|---|---|
| Height | 6U (262 mm / 10.31 in) |
| Width | 20 mm (0.8 in) |
| Depth | 187 mm (7.4 in) |
| Weight | 0.35 kg (0.77 lb) |
Ordering Information
When ordering the 200-530-025-014 CMC 16, specify firmware and hardware versions:
- Type Designation: CMC 16 Condition Monitoring Card
- Ordering Code: 200-530-SSS-HHh
- SSS = Embedded software version
- HHh = Hardware version (major “H”, minor “h”)
Details
| Weight | 0.35 kg |
|---|
