Overview

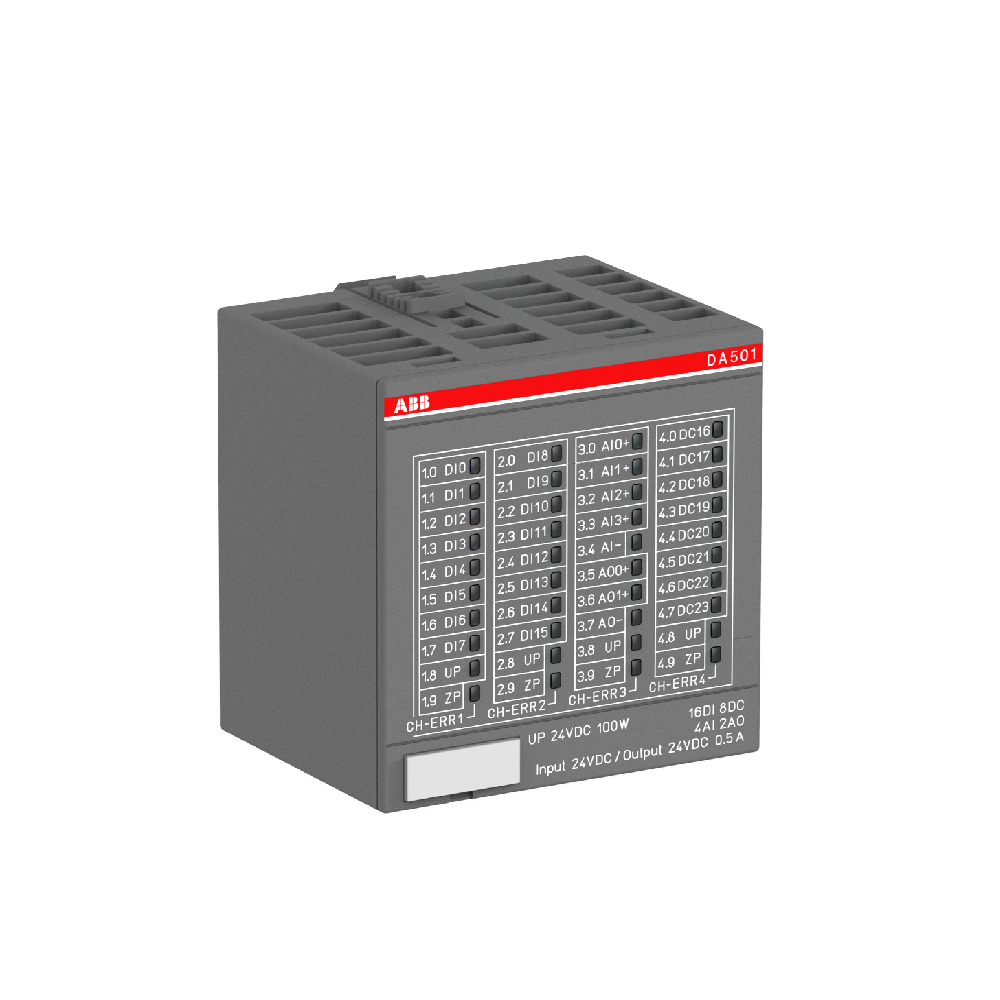

The ABB DA501 Digital Analog I/O Module (1SAP250700R0001) is a versatile module designed for ABB’s S500 systems. It offers both digital and analog I/O capabilities, featuring 16 digital inputs (DI), 4 analog inputs (AI), 2 analog outputs (AO), and 8 configurable digital inputs/outputs (DI/DO). With support for a variety of signal types including voltage, current, and RTD, this module ensures seamless data exchange and efficient operation in industrial control and automation systems.
Key Features
- Digital Inputs (DI): 16 channels, 24VDC.
- Analog Inputs (AI): 4 channels supporting U, I, RTD signals.
- Analog Outputs (AO): 2 channels supporting U, I signals.
- Configurable DI/DO: 8 channels, 24VDC, 0.5A.
- Communication: 1-wire interface for data transfer.
- Power Supply: 24VDC rated voltage with a range from 20.4VDC to 28.8VDC.
- Resolution: 13 bits for both analog inputs and outputs.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 1SAP250700R0001 |
| Digital Inputs (DI) | 16 channels, 24VDC |
| Analog Inputs (AI) | 4 channels, supports U, I, RTD signals |
| Analog Outputs (AO) | 2 channels, supports U, I signals |
| Configurable DI/DO | 8 channels, 24VDC, 0.5A |
| Resolution | 13 bits for AI and AO |
| Rated Supply Voltage | 24VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Degree of Protection | IP20 |
| Dimensions (L x H x W) | 62mm x 76mm x 67.5mm |
| Net Weight | 0.121 kg |
| Gross Weight | 0.145 kg |
| Package Dimensions (L x H x W) | 84mm x 72mm x 71mm |
Applications
The ABB DA501 Digital Analog I/O Module is ideal for industrial automation systems, particularly in ABB AC500 PLC systems. It supports a wide variety of signals, making it suitable for process control, monitoring, and data acquisition in industries like manufacturing, oil and gas, chemical processing, and power generation.
