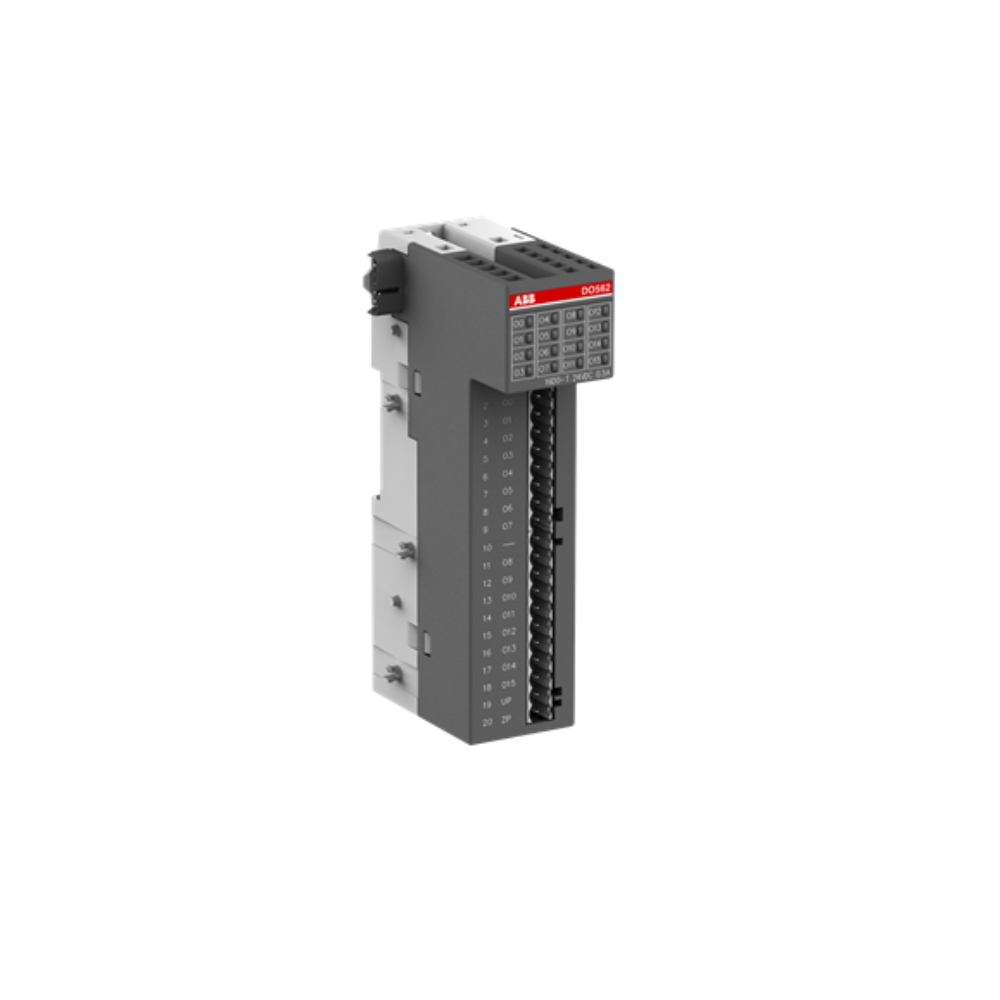

The ABB DO562 S500-eCo Digital Output Module provides reliable and efficient digital output for distributed automation systems. With 16 digital outputs and a 24VDC 0.5A output capability, it is designed for applications requiring reliable switching and control in industrial environments.
General Information
- Extended Product Type: DO562
- Product ID: 1SAP230900R0000
- ABB Type Designation: DO562
- EAN: 4016779927581
- Catalog Description: Digital output module. 16 DO: 24VDC 0.5A (DO562)
- Long Description: DO562: S500-eCo Digital output module with 16 digital outputs (DO), operating at 24VDC 0.5A with 1-wire connections.
Ordering Information
- CN8: 85371091
- Invoice Description: Digital output module. 16 DO: 24VDC 0.5A (DO562)
- Made To Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: Piece
Dimensions
| Specification | Details |
|---|---|
| Product Net Weight | 0.16 kg |
| Product Net Depth / Length | 75 mm |
| Product Net Height | 135 mm |
| Product Net Width | 34 mm |
| Gross Weight | 0.219 kg |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton |
Technical Specifications
- Function: 16 DO: 24VDC 0.5A
- Number of Digital Outputs: 16
- Number of Digital Configurable I/Os: 0
- Output Type: Transistor
- Output Voltage Type: DC
- Output Current: 0.5 A
- Output Voltage Maximum: 20.4 … 28.8 V
- Connection Type: Pluggable
- Degree of Protection: IP20
- Supply Voltage: 20.4 … 28.8 V DC
Additional Information
- Product Main Type: DO562
- Product Name: Distributed Automation PLCs
Classifications
- eClass: 27-24-22-04
- ETIM 8: EC001419 – PLC digital I/O module
- UNSPSC: 32151705
Environmental
- SCIP: 96068215-abe0-4b86-b3c4-9d667eae159b (Germany)
- WEEE B2C/B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Details
| Weight | 0.219 kg |
|---|---|
| Dimensions | 2362 × 1600 × 4318 mm |
