Product Description:

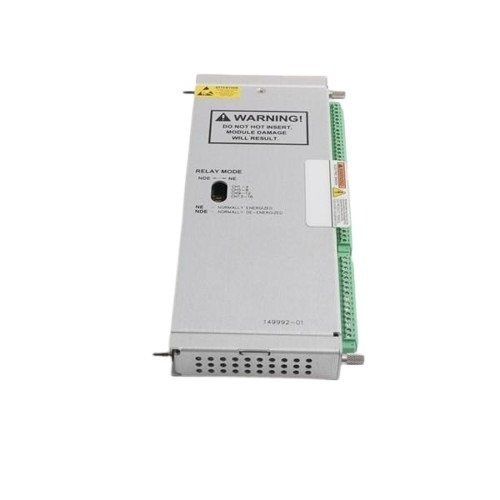

The Bently Nevada 149992-01 3500/33 module delivers 16 relay outputs, ideal for advanced system control in industrial environments. It seamlessly integrates with the 3500 rack system, ensuring reliable operation with a variety of flexible configuration options. The module is designed to operate in demanding conditions and provides high electrical ratings for both AC and DC systems.
Specifications:
| Parameter | Specification |
|---|---|
| Relay Type | Single-pole, Double-throw (SPDT) |
| Relay Contact Life | 10,000 cycles |
| Power Consumption | 5.8 watts typical |
| Max Current (DC) | 5 A |
| Max Voltage (DC) | 125 Vdc |
| Max Current (AC) | 5 A |
| Max Voltage (AC) | 250 Vac |
| Maximum Power (DC) | 70 W @ 24 Vdc, 10 W @ 48 Vdc, 9 W @ 60 Vdc |
| Maximum Power (AC) | 1200 VA |
| Sealing and Protection | Epoxy-sealed, integrated arc suppressor |
| Dimensions | 241 mm x 24.4 mm x 242 mm (9.50 x 0.96 x 9.52 in) |
| Weight | 0.7 kg (1.6 lb) |
Details
| Weight | 0.7 kg |
|---|
