Overview

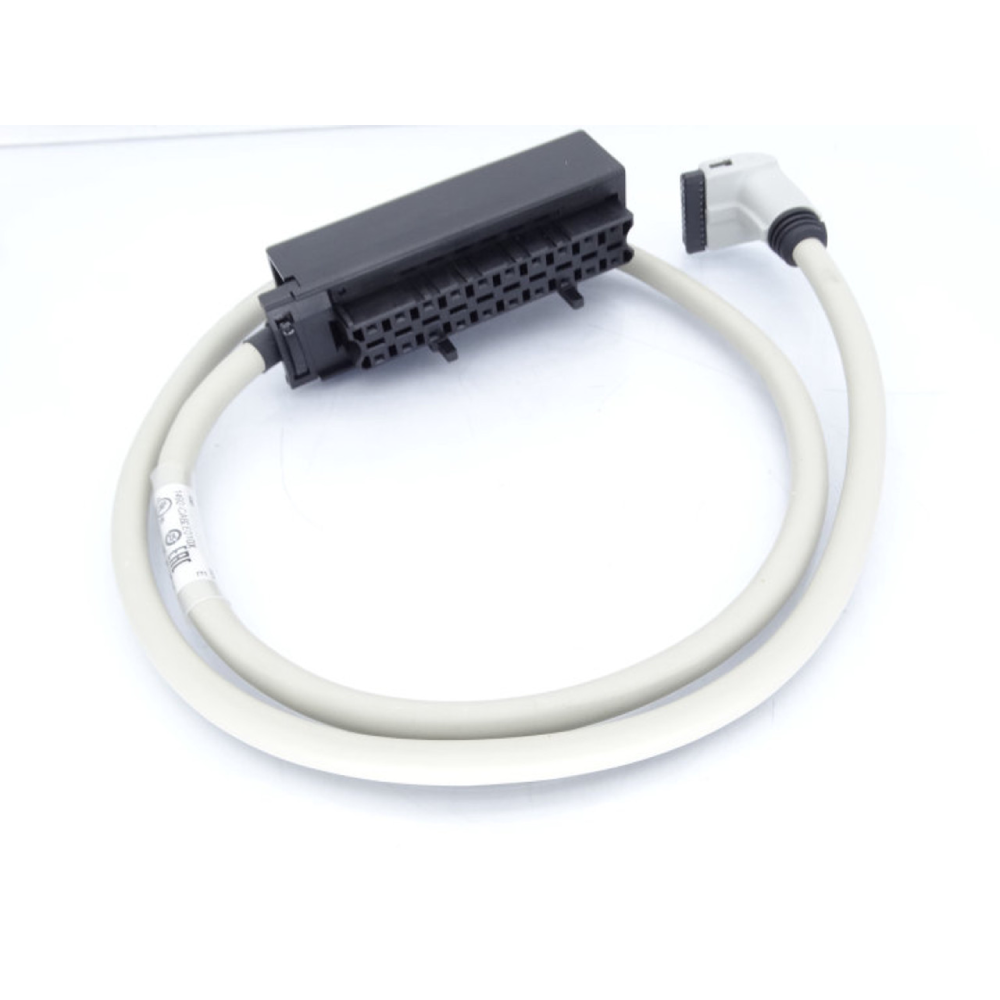

The Allen-Bradley 1492-CABLE010X is a high-quality pre-wired cable engineered for 1756 16-point I/O modules. It streamlines wiring and reduces installation errors while supporting conversions from legacy Modicon 800 and 1771 PLC-5® systems. Its robust design ensures reliable signal transmission and long-term durability in industrial automation environments.
This cable enhances machine building efficiency by simplifying design, minimizing wiring time, and providing clean panel aesthetics. With its standardized connectors, it integrates seamlessly into ControlLogix® systems.
Key Features
- Pre-Wired Convenience: Reduces design and engineering time for automation projects.
- Reliable Conductors: Includes 20 conductors with #22 AWG wire for accurate signal transfer.
- Standardized Termination: 1756-TBNH connector on one end and IFM 20-pin on the other ensures secure connectivity.
- Supports Conversions: Enables smooth upgrade from Modicon 800 and 1771 PLC-5® systems to 1756 ControlLogix® I/O.
- Durable Design: Rated insulation and CE, UL, FM certifications ensure reliable industrial operation.
- Compact Cable Size: 1 m length with 9 mm jacket diameter fits neatly in control panels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Part Number | 1492-CABLE010X |
| Series | ControlLogix (Bul. 1756 / 1757) |
| Cable Type | Pre-wired Cable (Terminal Block to IFM / Conversion Module / RTP Connector) |
| Compatible Modules | 1756IA16, 1756IN16, 1756IB16, 1756IC16, 1756IV16, 1756OA16, 1756OB16E, 1756OV16E |
| Number of Conductors | 20 |
| Wire Gauge | #22 AWG (0.326 mm²) |
| Cable Jacket Diameter | 9 mm |
| Cable Length | 1 m (3.28 ft) |
| Rated Insulation Voltage | 300 V AC / 300 V DC |
| Insulation Temperature | 80 °C |
| Storage Temperature | -20 °C to 80 °C |
| Relative Humidity | 5% to 95% RH |
| Pollution Degree | 2 |
| Certifications | CE, C-UL-US, UL, FM |
Applications
- Industrial Automation: Ideal for ControlLogix systems requiring secure connections.
- PLC Conversions: Facilitates upgrades from Modicon 800 or 1771 PLC-5® systems.
- Panel Wiring: Simplifies installation and maintains clean, organized control panels.
- Reliable Signal Transmission: Ensures accurate input/output communication across multiple channels.
FAQ
Q1: Is the 1492-CABLE010X brand new and original?
A1: Yes, this Allen-Bradley cable is 100% original and factory new.
Q2: How long is the cable and what gauge is used?
A2: It is 1 meter long with 20 conductors, each using #22 AWG wire.
Q3: Which modules is this cable compatible with?
A3: It works with 1756IA16, 1756IN16, 1756IB16, 1756IC16, 1756IV16, 1756OA16, 1756OB16E, and 1756OV16E.
Q4: What certifications does the cable have?
A4: The cable is certified CE, C-UL-US, UL, and FM, ensuring industrial compliance.
Q5: How quickly can it be shipped?
A5: We have stock available, and typical dispatch is within 3 days to 2 weeks using DHL or similar logistics.
