Overview

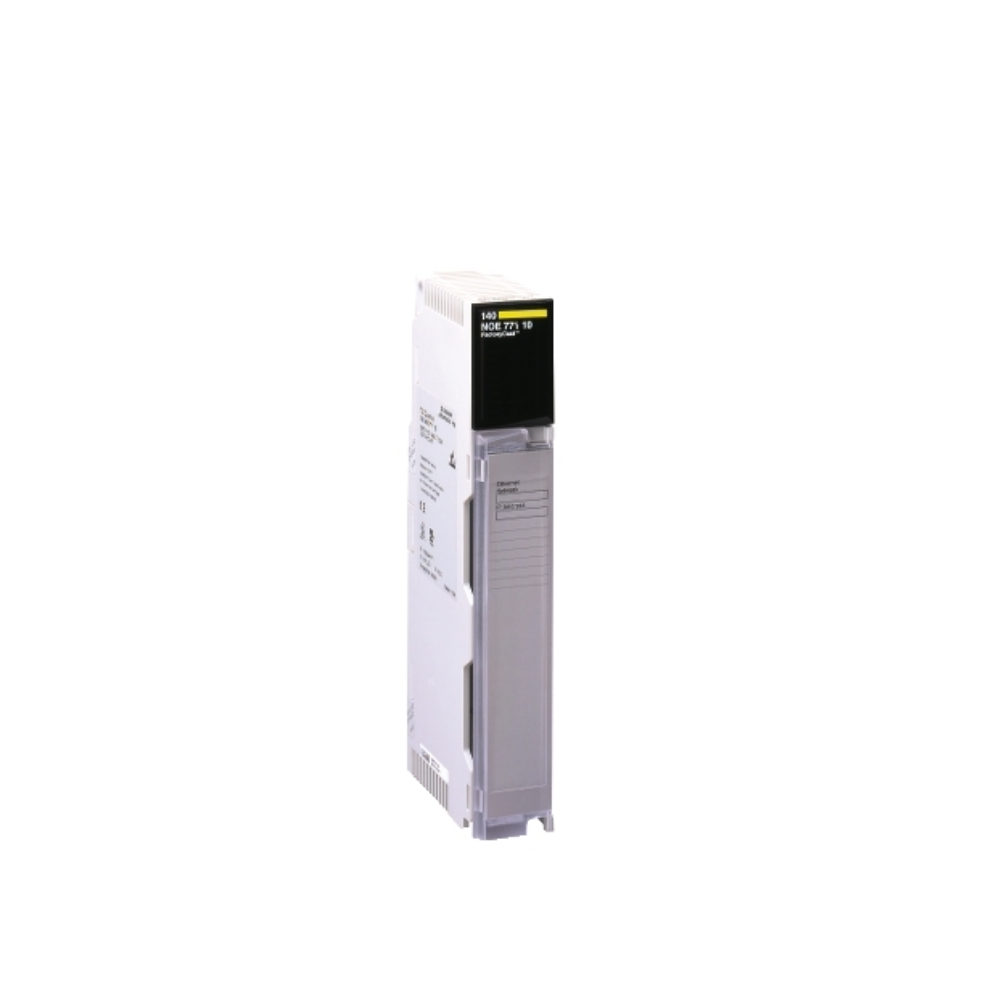

The Schneider Electric 140NOE77101 is a high-performance Ethernet network TCP/IP module designed for Modicon Quantum automation systems. It delivers reliable communication through transparent operation and supports advanced network management features.
This module integrates seamlessly with Quantum racks, providing both fiber optic and twisted-pair interfaces. It also includes local LED indicators for quick diagnostics and ensures consistent performance even in demanding industrial environments.
Key Features
- Transparent Ready Operation: Supports seamless data exchange across automation networks.
- Redundant Architecture: Hot standby redundancy enhances system reliability.
- Web-Based Diagnostics: Built-in Class B30 web server enables easy system monitoring.
- Advanced Communication Services: Supports SNMP, bandwidth management, I/O scanning, Modbus TCP messaging, and FDR server functionalities.
- Multiple Interface Options: MT/RJ fiber optic (100BASE-FX) and RJ45 twisted pair (10BASE-T/100BASE-TX) for flexible connectivity.
- LED Diagnostics: Provides visual feedback for network activity, module status, collision detection, and full-duplex operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number | 140NOE77101 |
| Product Type | Ethernet Network TCP/IP Module |
| Concept | Transparent Ready |
| Web Server | Class B30 |
| Communication Services | SNMP, bandwidth management, global data, I/O scanning, Modbus TCP, FDR server |
| Physical Interface | MT/RJ fiber 100BASE-FX, RJ45 10/100BASE-TX |
| Transmission Rate | 10/100 Mbit/s |
| Redundancy | Hot standby architecture |
| Power Supply | Via rack supply |
| Current Consumption | 750 mA @ 5 V DC |
| Net Weight | 0.345 kg |
| IP Degree of Protection | IP20 |
| Certifications | cUL, UL 508, CSA C22.2 No 142, FM Class 1 Division 2 |
| ESD Resistance | 4 kV contact, 8 kV air |
| EMF Resistance | 10 V/m (80–1000 MHz) |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | Up to 95%, non-condensing |
| Operating Altitude | ≤ 4500 m |
Applications
- Industrial Automation: Ensures reliable Ethernet communication for Modicon Quantum systems.
- Redundant Network Architecture: Suitable for critical automation processes requiring high uptime.
- Remote Monitoring: Web server diagnostics provide easy remote troubleshooting.
- Flexible Connectivity: Compatible with both fiber optic and twisted-pair network topologies.
FAQ
Q1: Is the 140NOE77101 original and in stock?
A1: Yes, this Schneider Electric module is 100% original and factory new.
Q2: What network protocols does it support?
A2: It supports Ethernet TCP/IP, Modbus TCP messaging, SNMP, and global data services.
Q3: Can it be used in redundant configurations?
A3: Yes, it features hot standby redundancy for enhanced system reliability.
Q4: What diagnostic features are available?
A4: It has multiple LED indicators for network status, collision detection, module faults, and full-duplex mode.
Q5: How quickly can it be shipped?
A5: We have stock ready, and shipping typically occurs within 3 days to 2 weeks via DHL or similar carriers.
