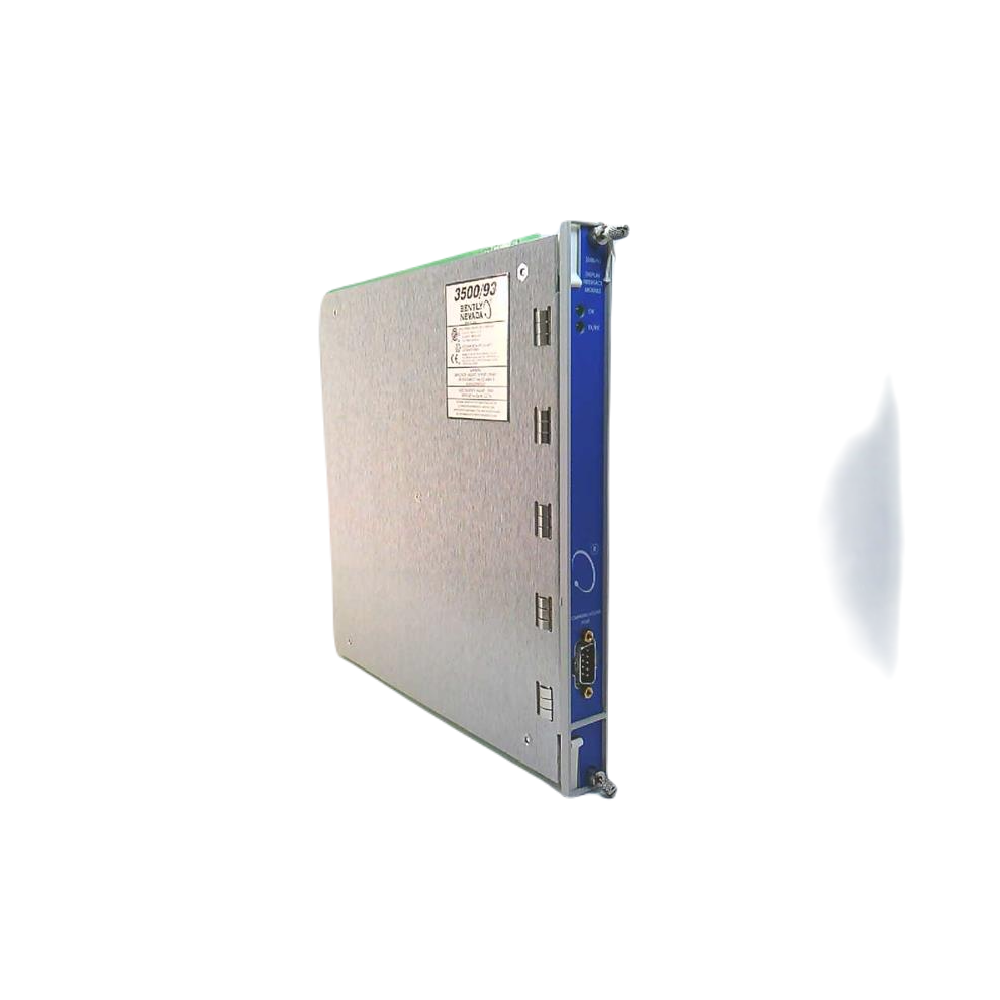

The Bently Nevada 3500/93 Display Interface Module is a key component for providing real-time visualization and status monitoring in the 3500 Monitoring System. It collects and displays critical data, such as current values and alarm statuses, from other modules in the 3500 rack through a high-speed internal network.

Specifications

Inputs

• Power Consumption:
  • 15.5 W maximum (combined for Display Unit & Display Interface Module)
  • 5.6 W maximum (-01 Display Unit)
  • 12.0 W maximum (-02 Display Unit)
• Data Types:
  Collects real-time data, including current values and current alarm status, over a high-speed internal network.

Outputs

• Indicators:
  • OK LED: Indicates proper operation of the Display Interface Module.
  • TX/RX LED: Signals active communication with other modules in the 3500 rack.

Environmental Limits

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: Up to 95%, non-condensing

Physical

• Dimensions (H x W x D):
  241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
• Weight: 0.82 kg (1.82 lb.)
