Module Overview

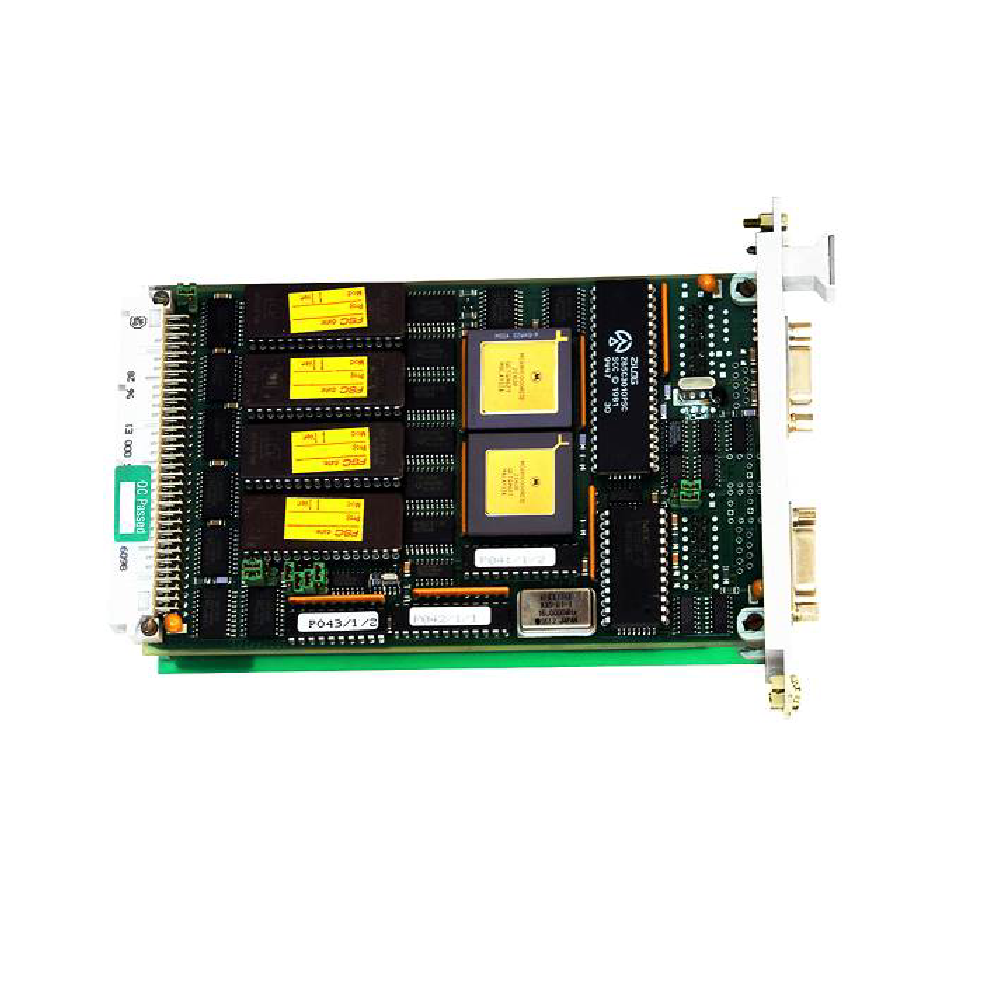

The Honeywell 10024/H/F 26800 is an enhanced communication module designed for integration with central processors using RS232 and high-speed H-interface connections.
Moreover, it supports redundant network architectures and ensures reliable data exchange for industrial automation systems, meeting strict CE, UL, and TÜV approvals.
Key Functional Highlights
- High-Speed H-Interface: Supports up to 2 Mbaud for fast data transmission over short cables.
- Reliable F-Interface Communication: Operates up to 38.4 kbaud with galvanic isolation greater than 6 kV.
- Compact Form Factor: Requires 8 TE and 3 HE (8 HP, 3U), minimizing rack space while maintaining connectivity.
- Safe Handling: Users must avoid removing or replacing the module while central power remains on.
In addition, the module ensures seamless integration into existing Honeywell architectures with minimal configuration effort.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type Number | 10024/H/F 26800 |
| Approvals | CE, UL, TÜV |
| Software Version | ≥ 2.78f (configuration ≥ 530) |
| Space Requirements | 8 TE, 3 HE (8 HP, 3U) |
| H-Interface Max Baud | 2 Mbaud |
| F-Interface Max Baud | 38.4 Kbaud |
| Galvanic Isolation (F-interface) | > 6 kV |
| H-Interface Cable Length Max | 1.5 m at 2 Mbaud |
| F-Interface Cable Length Max | 10–15 m depending on baud |
| Connector Type | H: Male 9 pins; F: Female 9 pins |
| Power Requirements | 5 V DC, 500 mA |
| Ripple Content | < 50 mV p-p |
These specifications make the 10024/H/F 26800 module ideal for robust and precise communication in industrial environments.
System Integration
The 10024/H/F 26800 COM module integrates easily with Honeywell controllers and I/O modules, supporting RS232 and H-interface communication.
Its galvanic isolation and high baud rates improve network reliability, while compact dimensions allow efficient installation in standard 19-inch racks.
Details
| Weight | 3 kg |
|---|
